Supports for Systembox

Upper and lower steel supports for Systembox. Required for fixing on the wall or on whiteboards. In 2 higher versions that allow infinite combinations and a lower version to stabilize a set of columns.
*
Availability:
Lead Time:



Upper and lower steel supports for Systembox. They allow to fix the Systemboxes on the wall or on a blackboard. The lower support gives stability to the whole. Provided with holes for assembly. We recommend that you attach the upper supports before joining them to the Systemboxes.

FEATURES

The inclination of the supports also makes it possible not to increase the size of the column as the number of Systemboxes increases, making sure that each element, with the lower part, hits the wall or on the blackboard.

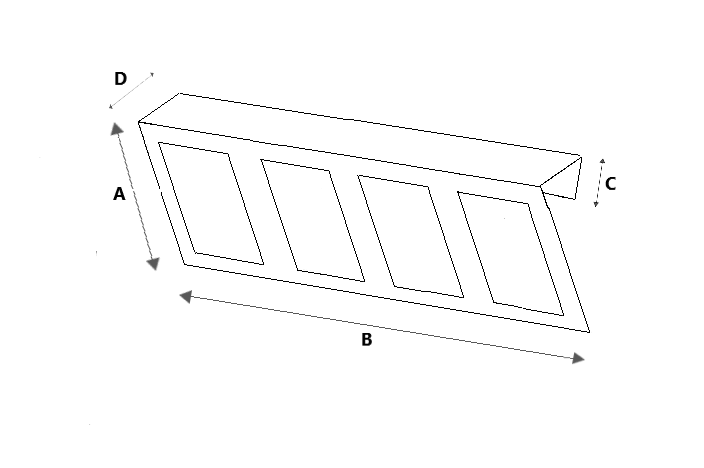

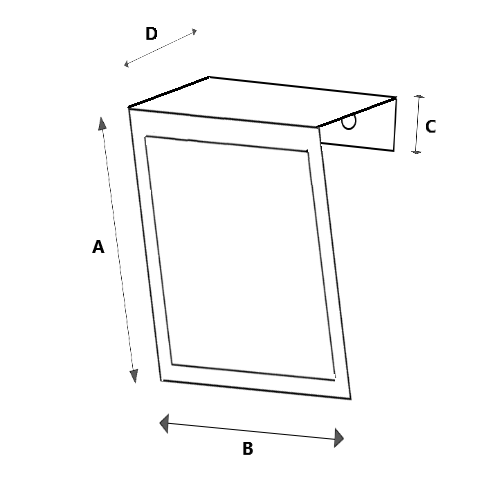

 Single top with 2 fixing holesQuadruple top with 3 fixing holesLower with 2 fixing holes

  FORMATS

 Single topQuadruple topLower
A (mm)166166 20
B (mm)11148690
C (mm)202020
D (mm)606010
