Technical data

The K50 Series offers robust, cost-effective and easy-to-install solutions for error and part verification applications during assembly, picking and storage.
The illuminated dome offers a brightness suitable for working processes since it is easy to see, with 14 programmable colors.
The user can customize or select the different configurations of the device depending on the needs.
Modbus communication minimizes system wiring and programming requirements.

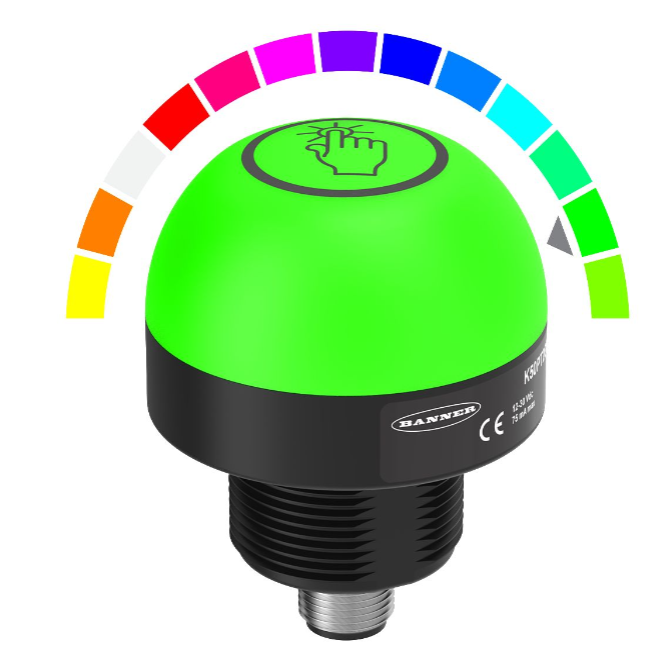

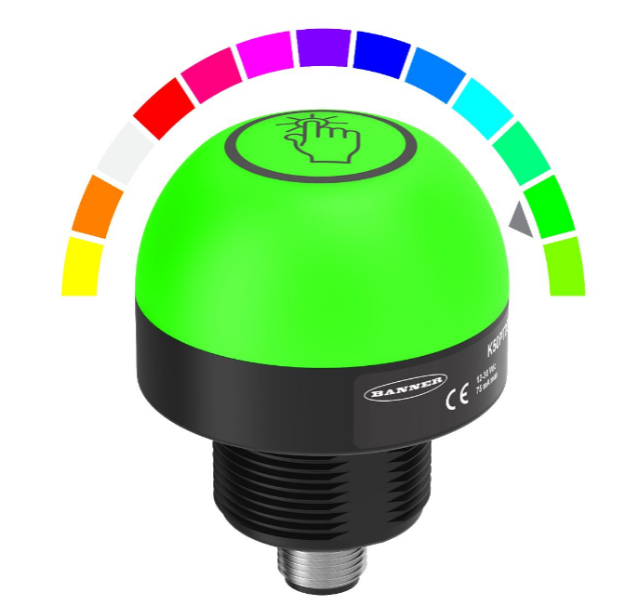

• Luminous dome with 50 mm diameter
• Versions: Optical sensor, capacitive and pressure touch button for drive options
• Models with optical sensors, touch and indicators rated IEC IP67 and IP69K according to DIN 40050-9;
• Button models rated with IEC IP65 protection rating

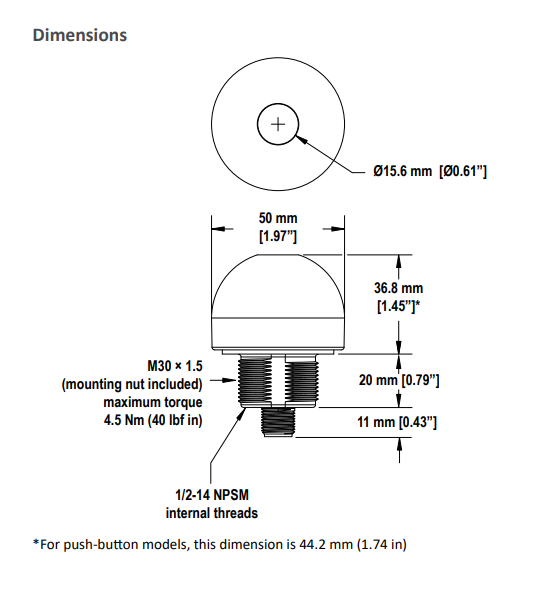

Measures K50		PTLK50 with sensor

Download
