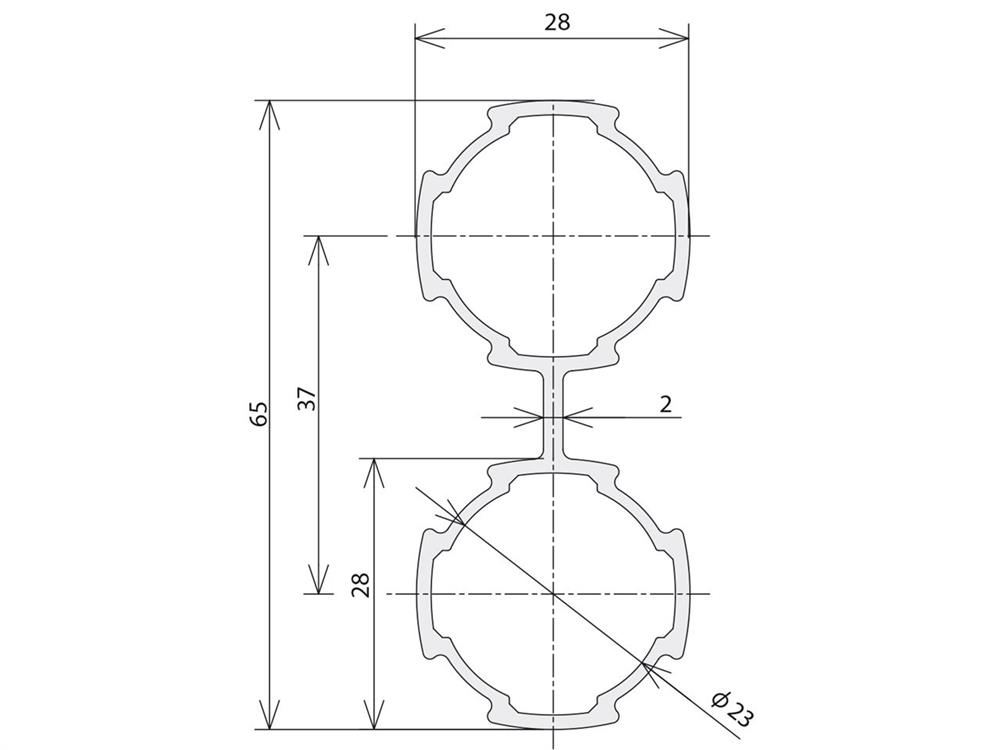

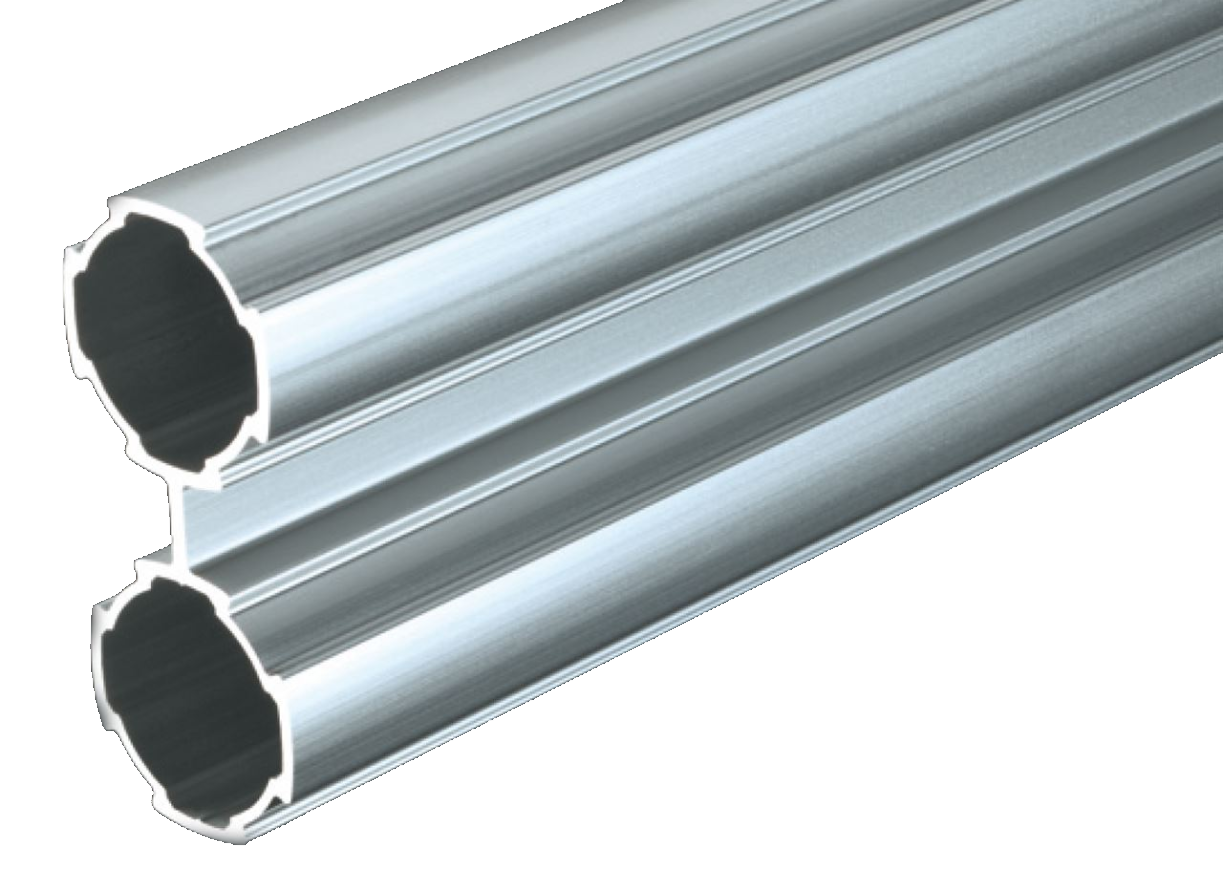

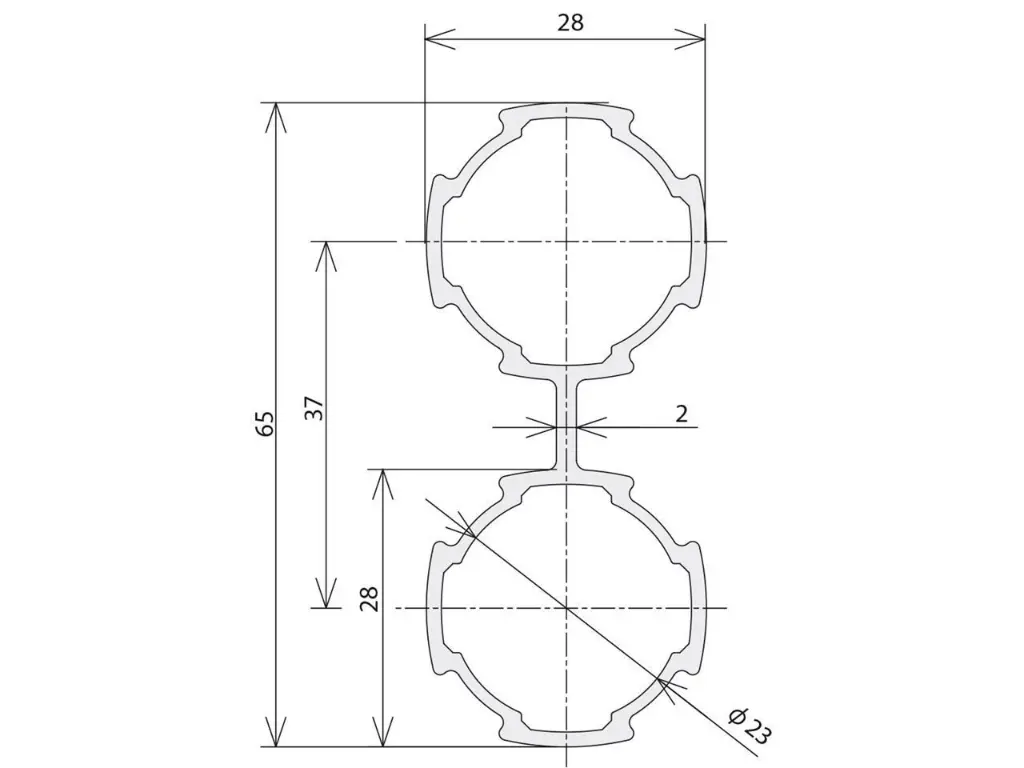

Green frame GF-N W

Green frame GF-N W
*
*
Availability:
Lead Time:



FEATURES

Material:

anodized aluminum

Weight:

0,79 Kg / m

Specifications:

use connector GFJ-012 or internal connectors





 TECHNICAL DATA





Section secondary momentum:

lx=11,66x104 mm4

ly=2,31x10mm4

Section coefficient:

Zx=3,59x103 mm3

Zy=1,65x103 mm3





APPLICATIONS

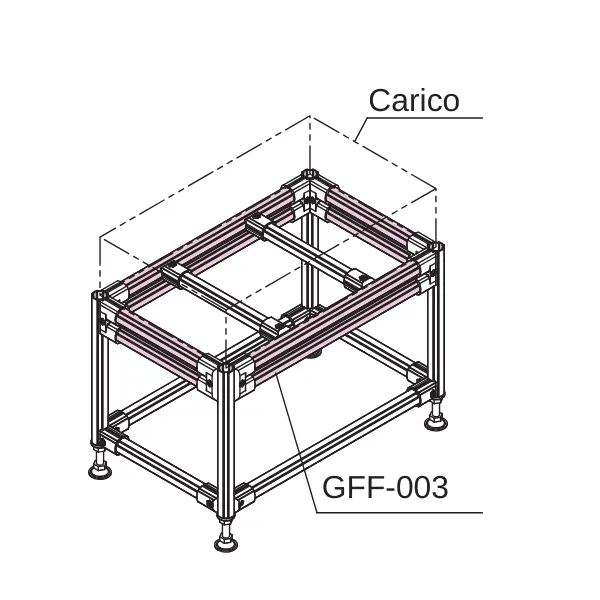

Example of workstation
