FEATURES | Material: | anodized aluminum |
|---|
Weight: | 0,67 Kg / m |
|---|
Specifications: | - high load capacity |
|---|
| | - use outer type connectors only |
|---|
| | | TECHNICAL DATA |  | Section secondary momentum: |
|---|
lx=3,37x104 mm4 | ly=3,02x104 mm4 | Section coefficient: |
|---|
Zx=1,10x103 mm3 | Zy=1,38x103 mm3 |
|
|
| | |
APPLICATIONS |
| |
 |
|
Customers who bought this item also bought
GFJ-252
Multi connector inner 2 type for GF-N
GFJ-255
Internal connector 90 ° for GF-N C10

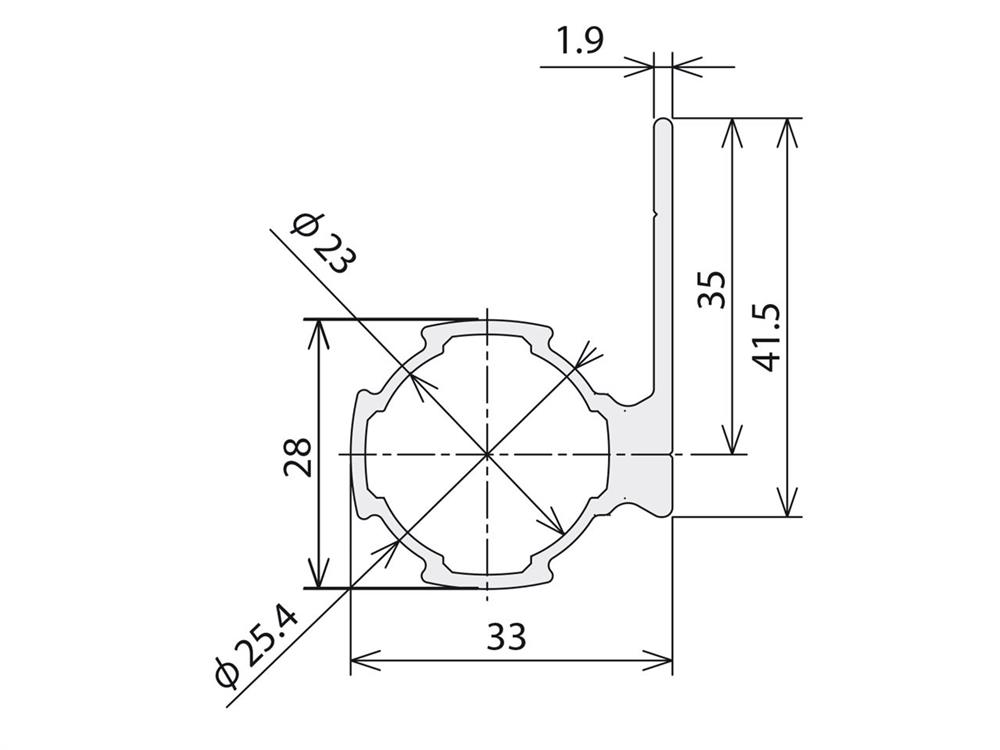

Aluminum base profile Ø 28 mm for Green Frame applications. Available in 4000 mm bars or pre-cut.
