FEATURES |
Material: | aluminum Die-Cast |
|---|
Weight: | 0,74 Kg / m |
|---|
Specifications: | ideal for increasing rigidity and flow rates of GF structures thanks to compatibility with GF-N |
|---|
| |
TECHNICAL DATA |
|
| Section secondary momentum: |
|---|
lx=5,07x104 mm4 | ly=5,07x104 mm4 | Section coefficient: |
|---|
Zx=2,36x103 mm3 | Zy=2,36x103 mm3 |
|

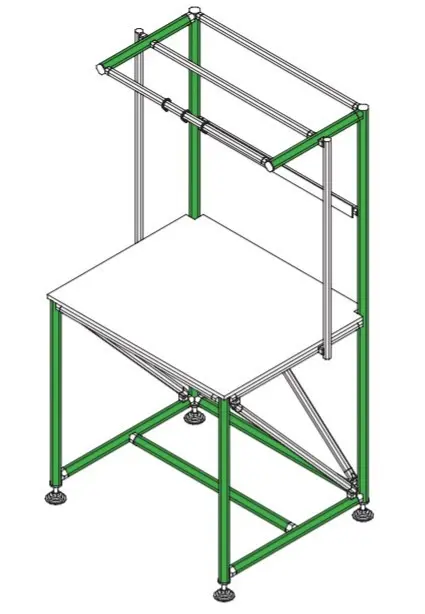

APPLICATIONS |
|
Customers who bought this item also bought
GFJ-209
Multi connector inner type for GF-G
GFJ-B00
Free connector outer type H-F for GF-N
Aluminum base profile Ø 28 mm for Green Frame applications. Available in 4000 mm bars or pre-cut.
