Upper and lower steel supports for Systembox. Required for fixing on the wall or on whiteboards. In 2 higher versions that allow infinite combinations and a lower version to stabilize a set of columns.

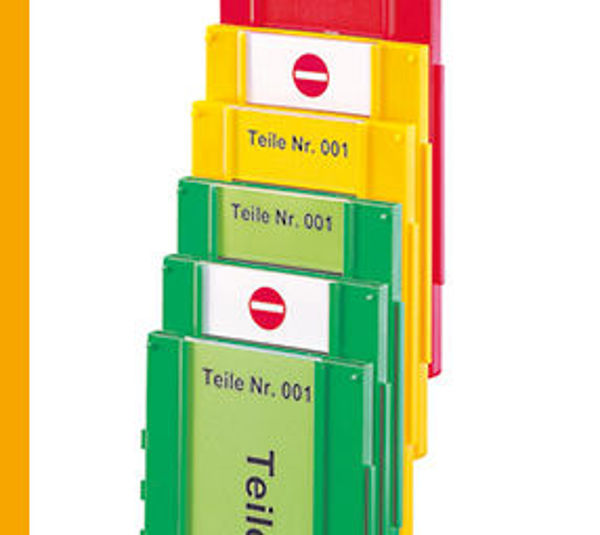

The Systemboxes are colored plastic elements that can be stacked and placed side by side. Used for the collection of Kanban tags and the creation of Semaphore Kanban, Heijunka and Lot Size Kanban systems. The rear notched groove is the housing of an adapter that allows the insertion of even small Kanban. Requires accessories to complete the system. Compatible with Systembox A4. ESD version available.

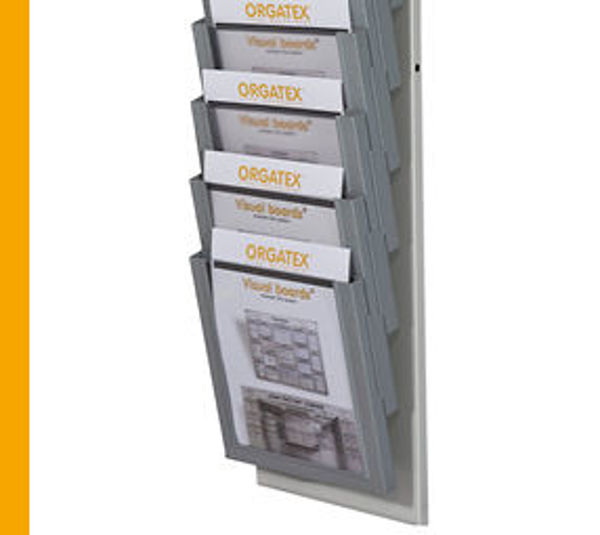

The A4 Systemboxes are plastic elements that can be linked and joined together, available in 2 colors and 2 different thicknesses that allow the collection of bulky documents. They need accessories to complete the system. Can be used for the creation of Heijunka and Lot Size Kanban. Compatible with Systembox.

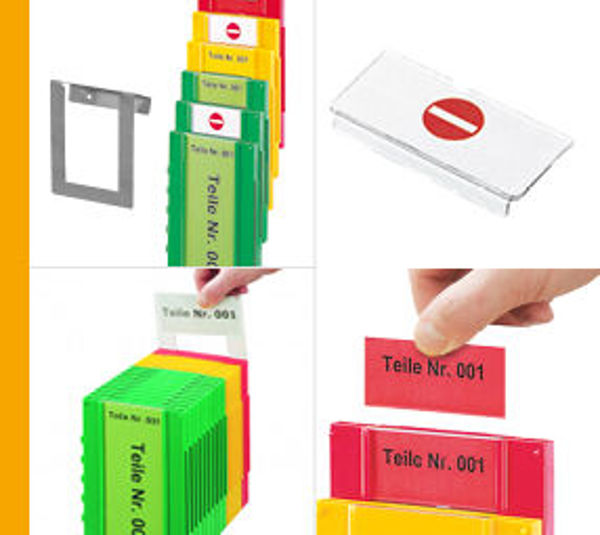

Transparent plastics for Systembox. Top, front and flag are open and allow the insertion of identification tags: the first 2 for Systembox in extended conformation, the third in compact conformation. Plastic with ban, however, prevents the insertion of the Kanban.
Plastic for Systembox A4, transparent. Superior to close the light between one Systembox A4 and the other in cascade formation; the front plastic, to be used only on the latest Systembox A4 in both cascade and compact formation. They prevent the inserted documents from spilling out.

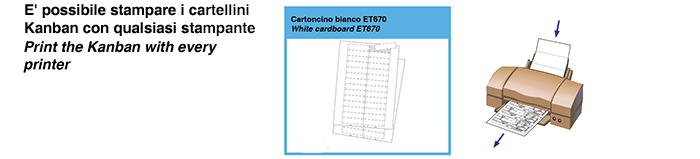

Supplied in pre-perforated DIN A4 sheets, they can be printed on any printer on the market. Identify the contents of the Systembox. The colored cards inserted in the relative plastics allow to use a single color of Systembox giving the possibility to create the Kanban Traffic Light simply by alternating the colors as desired.
Upper support for creating and fixing a Systembox A4 column on the wall or on a blackboard; lower supports, with 2 different thicknesses according to the chosen Systembox A4 model, to fix the lower part of the column.
Mounting screws kit to fix the upper supports to aluminum profiles C8, C10, profile GFF-000 or profile with slot GFF-004. Kit 2 units for support greater than 1 column SYSB-WH-1; Kit 3 units for upper support with 4 columns SYSB-WH-4. Each unit is made up of 1 screw and 1 nut.
The Kanban cards that come from the empty containers are divided by article and inserted from the bottom upwards into the Kanban Traffic Light System. Production can begin upon reaching the yellow zone. If you reach the red zone you absolutely must start the production. The construction and use of the Kanban Traffic Light from the bottom up allows us to immediately supervise and monitor production priorities.
The Systembox system is modular for individual elements and can be adapted to sizes of the Kanban ranging from the business card to the DIN A4 vertical format. The elements slide one on top of the other thanks to rear and side guides. The Standard and formsto A4 versions are complementary.
The Systemboxes can be fixed thanks to special brackets that reduce the overall dimensions, both on the wall and on whiteboards. The latter allow the possibility of integrating a magnetic section for displaying additional information.
Kanban card management
Colour chart
The colours allow to define the position of the products and their classification, the progress of the product or the maintenance status of the equipment necessary for production.
