NEO 30

Sorry - this product is no longer available

SKU: 89349

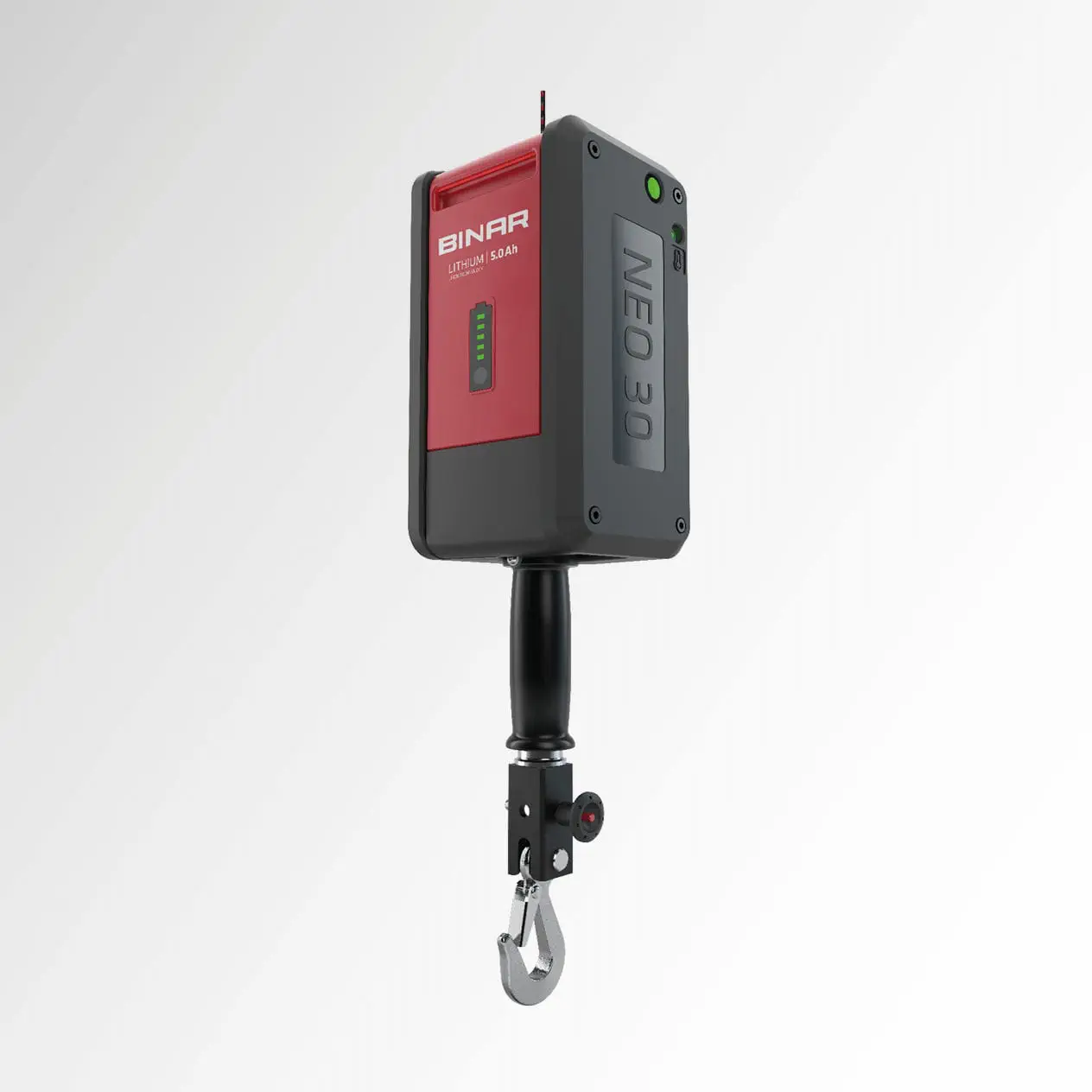

The NEO 30 is a battery-driven, mobile lifting device. Just attach the swivel to an overhead crane or an eyebolt in the ceiling and the NEO 30 is ready to use. It can handle goods up to 30kg, moving them safely and precisely with the help of the operator’s hand. In other words, it can be described as an extension of the human arm.
Availability: 0
Lead Time:

The NEO 30 is a battery operated mobile hoist. Simply mount the supplied swivel stand and NEO 30 is ready to use.

An alternative to the use of weight aids of various kinds: hoists, winches or industrial manipulators.

It can lift weights of up to 30 kg, moving them safely with the help of the operator's hand. In other words, it can be described as an extension of the human arm.


  • Unique and patented product
  • The low weight and the position with respect to the weight to be moved, avoid oscillations during use
  • Quick and easy to install
  • Battery operated
  • Mobile, easy to move between different workstations
  • A wide range of standard lifting accessories
  • Lift up to 30 kg with minimal effort
  • Safe and precise, it offers users an ergonomic lift
  • Quick coupling system for any accessories
  • Internal gyroscope that activates the automatic winding in case of incorrect use: inclination greater than 10° or rope not under tension
  • Indicator and block in case of overheating
  • Certification CE
  • Almost zero installation time and costs


The complete kit includes



immagine



  • NEO 30
  • Swivel hook
  • Adattatore
  • Charger
  • 2 Batteries
  • Standard hook
  • Product manual


NEO 30, meets the following applied standards:

EN ISO 12100: 2010
Safety of machinery - General principles of design - Risk assessment and risk reduction
EN 13155+ A2: 2009Cranes - Safety - Equipment for lifting non-stationary loads


Batteries

  • Lithium batteries with level indicator
  • Battery life depends on the frequency of use, the ride performed and the weight to be lifted. Indicative duration 5-8 hours
  • Full charge time about 2 hours
  • To safeguard battery life, batteries are used in the range of 10-95% so as to keep the cells inside stable.



immagine

WATCH THE NEO 30 IN ACTION
