FIFO Monorail - Rails

Monorail track usable for the one-sided guide of trolleys with wheel widths up to 40 mm or 55 mm. Thanks to the accessories you get: modular length thanks to the joints; easy entry thanks to the V-shaped terminals; support between rails regularly spaced thanks to the connection plates. It is possible to integrate structures for suspended signs.

FIFO Monorail - Terminal

Terminals for FIFO Monorail - Guide. Equipped with 4 holes for fixing to the ground and connection elements to FIFO Monorail - Guides (grains included): with V or larger opening, in 2 widths to adapt to the 2 versions of FIFO Monorail - Guides and to facilitate the entry of the trolleys . The versions 55 mm and with easy opening are reinforced.

Monorail FIFO station

Monorail FIFO station available with tracks in length 1200 mm, 1800 mm and 2400 mm. It allows you to organize 5 lanes of trolleys with wheels up to 55 mm.

FIFO Monorail - Connection plates

Connecting plate between FIFO monorail - Rails. Available in 400 mm, 800 mm and special versions for FIFO Monorail stations with different length guides. Fixing screws included. Useful to keep the guides equidistant and optimize the managed spaces.

FIFO Monorail - Fixing plates

MONO-HB

Plates for fixing the tracks to the pavement. Pre-drilled they hook to the external groove of the track with 2 fixing points (screws included) and provide a ground anchor hole.Can be used on both versions of FIFO Monorail - Rails

FIFO Monorail - Terminal protection

MONO-EK-AS

Plates for the protection of the external part of the FIFO Monorail - Shock terminals. In steel, they are supplied in pairs, right and left, arranged for fixing to the ground and to be joined to the terminal (screws included).

FIFO Monorail - eConnection element

MONO-SV-100

Steel connection element to connect multiple FIFO Monorail-Tracks and make guides available for a greater number of trolleys. Screws included.

FIFO Monorail - Monorail brake

MONO-BBR-200

Steel brake with plastic brush to brake the carriage travel on FIFO Monorail - Rails. To be installed also on both sides, they are adjustable in braking intensity. If intermediate stops are required, several brakes can also be added at the desired distance. Fixing screws included.

In depth

Rail system for 40 mm and 55 mm wheels

Aluminum rail system of two different widths, 40 and 55 mm, for driving on one side of trolleys. The wheel runs on the aluminum track, conveyed by terminals with easy entry.
A series of add-ons allow the joining of the rotates, the reinforcements at the terminals and the integration of brakes for parking the trolleys.7

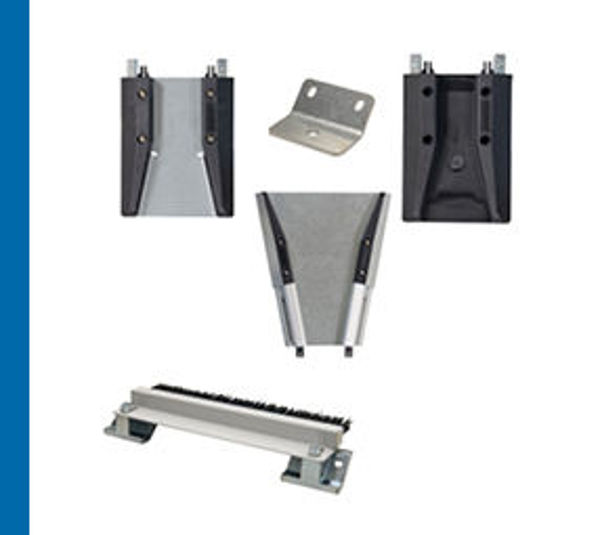

Accessories


Terminal and reinforcement		Connection elements		Brush brake
