MiR Charge 48V

SKU: LP-MIRCHARGE48V

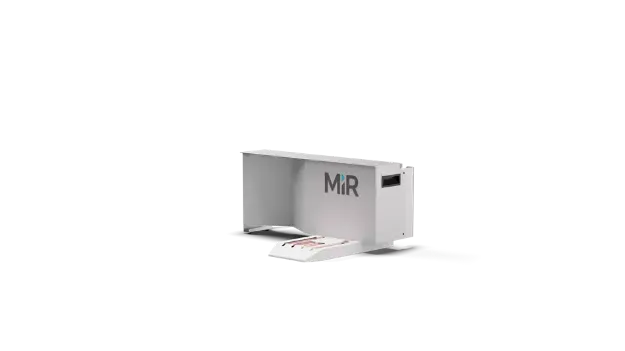

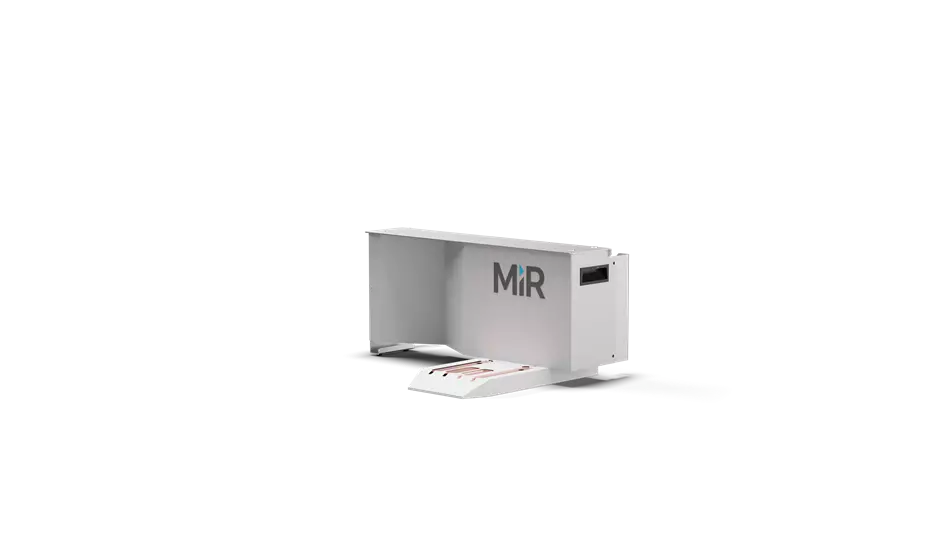

MiR Charge 48V is a fully automatic charging station that allows MiR250, MiR600 and MiR1350 robots to independently recharge their batteries as needed. This small, non-intrusive charging station uses standard power and can be easily integrated into almost any environment.
Availability: 1
Lead Time:

FEATURES



Your MiR250, MiR600 and MiR1350 robots will never run out of power in the middle of a job. MiR Charge 48V is a fully automatic charging station that offers flexible deployment options to suit your needs. The robot returns autonomously to the charging station and connects when the battery drops below the established limits. It can also be programmed to recharge regularly between deliveries, such as when it returns to a warehouse or warehouse, which can allow the robot to run almost continuously. MiR Charge 48V fully charges a MiR250 robot in about an hour. When multiple robots are deployed using MiR Fleet, the system evaluates battery levels and workloads, optimizing usage and charging to keep the fleet working 24/7. Designed for harsh environments, just like the new MiR robots , MiR600 and MiR1350, MiR Charge 48V is IP52 rated, which means it can withstand water droplets and dust, and thus can be used in more environments than other charging stations. Discreet to install in your facility. It uses standard power outlets and its low profile and small footprint offer additional flexibility in how you power and distribute your mobile robot.



TECHNICAL DATA



Intended use:

  • Automatic charger for MiR250, MiR600 and MiR1350 robots. The robot moves and connects to the charging station


Dimensions:

  • Lenght 622 mm

  • Width 287 mm

  • Height 237 mm

  • Weight 20 kg



Colours:

  • RAL 7035 / Light grey



Mounting:

  • To be mounted flush with the floor


Environmental characteristics:

  • Temperature  from +5 °C to +40 °C (humidity 10-95% without condensation)

  • Maximum altitude 2000 m


Power:

  • Output 48 V, maximum 40 A

  • Ingresso I/O 100-240 V CA, 50–60 Hz


Conformità e approvazioni:

  • Standard elettric EN60335-2-29

  • Omologation TüV USA: NFPA 70: 2017, UL 1564: 2015, NFPA 791: 2021
