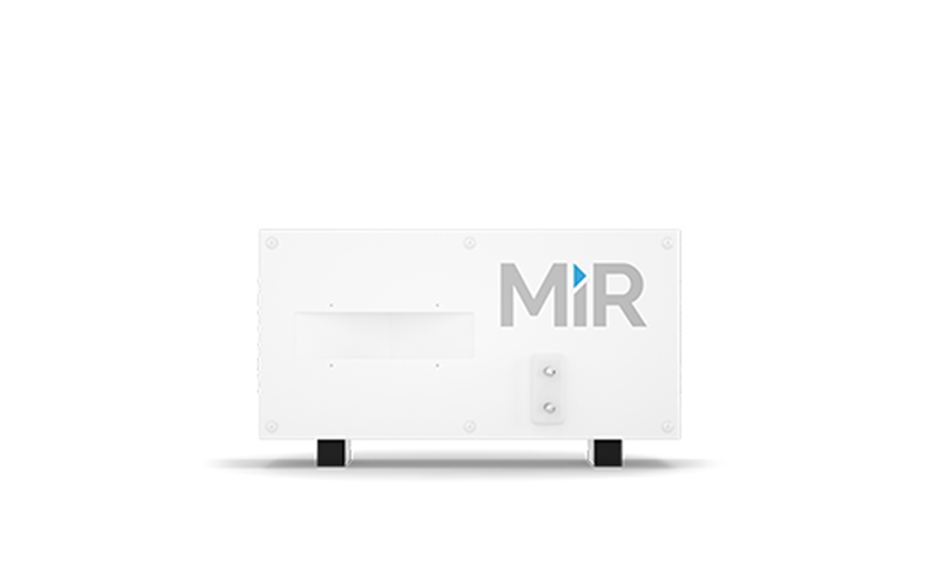

MiR Charge 24 V

FEATURES

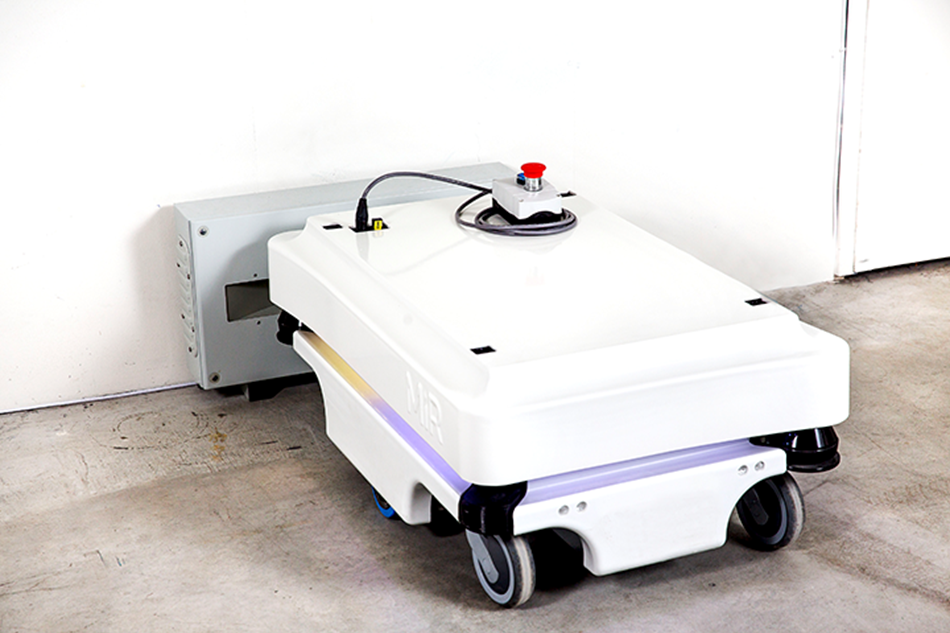

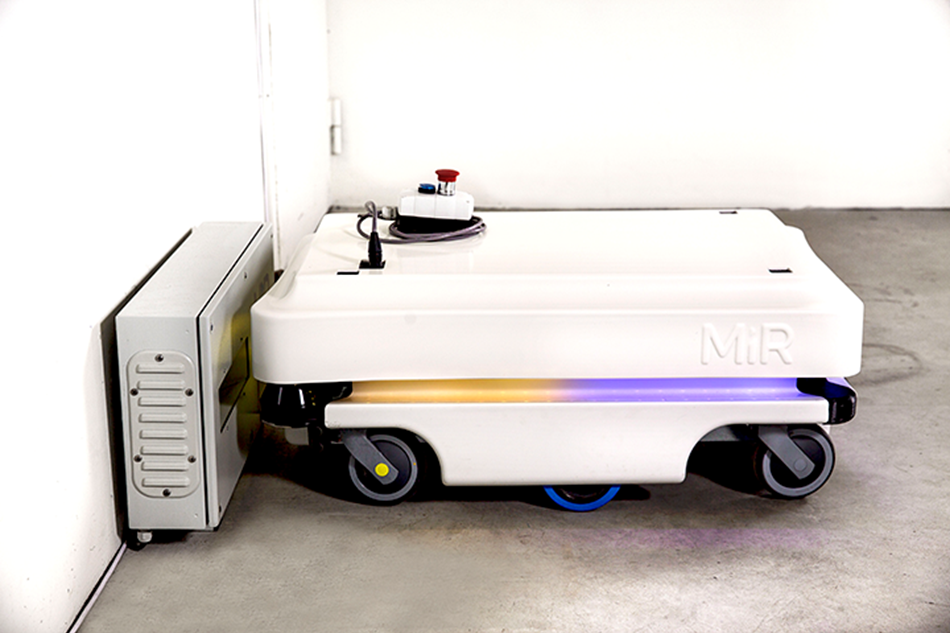

Your MiR100 robot will never run out in the middle of a job. MiR Charge 24V is a fully automatic charging station that offers flexible deployment options to suit your needs. The robot returns autonomously to the charging station and connects when the battery drops below the established limits. It can also be programmed to recharge regularly between deliveries, such as when it returns to a warehouse or warehouse, which can allow the robot to run almost continuously. MiR Charge 24V fully charges a MiR robot in about two hours. When multiple robots are deployed using MiR Fleet, the system evaluates battery levels and workloads, optimizing usage and charging to keep the fleet working 24/7. Discreet to install in your facility. It uses standard power outlets and its low profile and small footprint offer additional flexibility in how you power and distribute your mobile robot.

TECHNICAL DATA

Intended use:

• Autonomous Mobile Robot (AMR)

• For small transport in the manufacturing, logistics and healthcare sectors

Dimensions:

• Length 890 mm

• Width 580 mm

• Height 352 mm

• Height from the floor 50 mm

• Weight (without load) 70 kg

Colour:

• RAL 9010 Pure white

Mounting:

• To be mounted flush with the floor

Environmental characteristics:

• Temperature +5 °C a +40 °C (humidity 10-95% without condensation)

• Maximum altitude 2000 m


Power:

• Output 24 V, maximum 25 A

• I/O 100-240 V CA, 50–60 Hz

• Consumption Nom. 7,3 Amp a 100 V AC, nom. 2,9 Amp a 240 V CA


Conformità e approvazioni:

• Electrical standards EN60335-2-29
