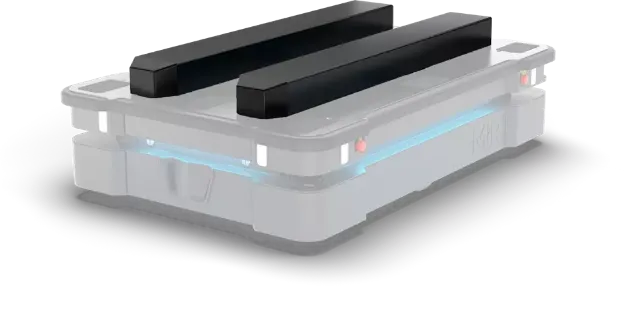

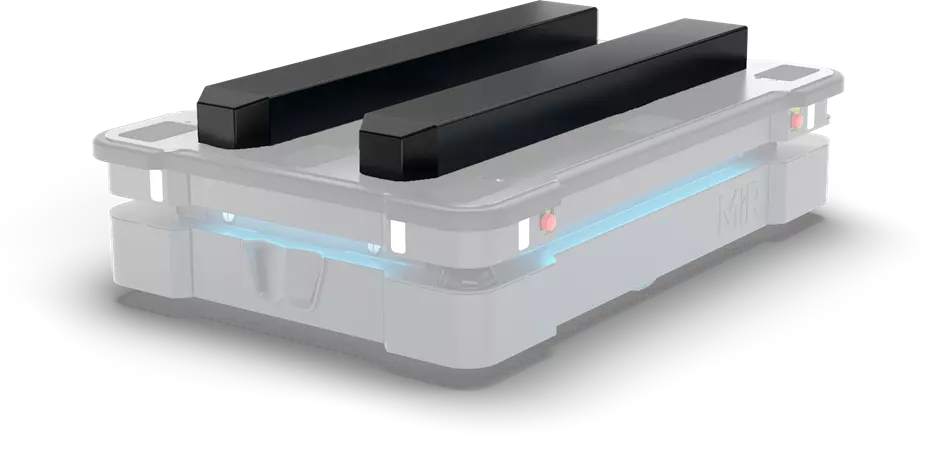

MiR 600 EU Pallet Lift

SKU: LP-MIR600LIFTEU
Increase efficiency by automating internal pallet transport with the MiR 600 equipped with the EU Pallet Lift module. Automatically delivers pallets throughout the facility at high speed.
Availability: 0
Lead Time:



FEATURES



The EU Pallet Lift module ensures stable handling and transport of your pallets. It allows the MiR600 to lift pallets autonomously from the MiR EU Pallet Rack and lower the pallet for stable transport with total payloads up to 500kg.

Optimize pallet transport without changing the plant layout. Thanks to this module, the MiR 600 picks up, transports and unloads pallets autonomously, freeing up employees for more valuable tasks.



TECHNICAL DATA



The complete technical specifications of the MiR 600 robot can be read by clicking here.

Di seguito le specifiche del modulo MiR EU Pallet Lift



Intended use:

  • Device for autonomous sorting of EU pallets

  • Developed to work with the MiR 600



Dimensions:

  • Lenght 1200 mm

  • Height 87 mm

  • Total height when lifted 150 mm

  • Lift heght 60 mm



Colour:

  • RAL 9005 / Black



Payload:

  • Maximum payload 500 kg



Speed and performances:

  • Upward lifting speed 4.0 s

  • Downward lifting speed 4.0 s

Pallet:

  • Pallet EU 1200 x 800 mm

  • Production specifications EU EN 13698-1
