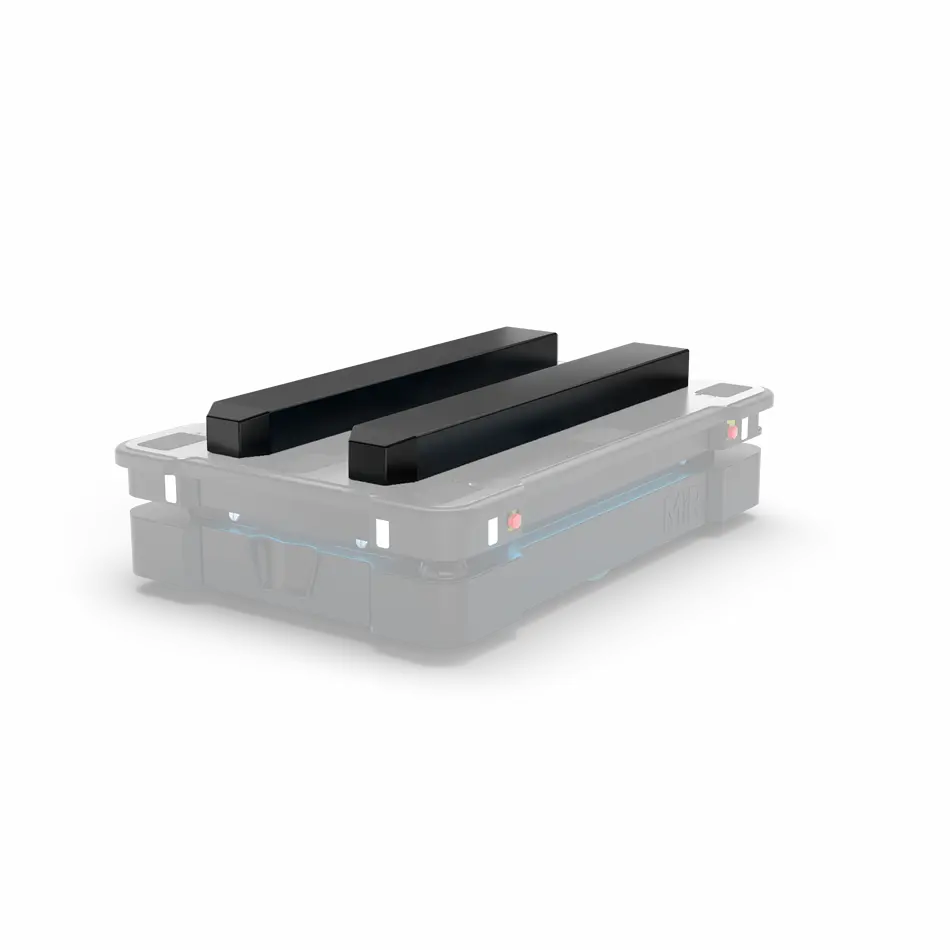

MiR 1350 EU Pallet Lift

FEATURES

The EU Pallet Lift module ensures stable handling and transport of your pallets. It allows the MiR 1350 to lift pallets autonomously from the MiR EU Pallet Rack and lower the pallet for stable transport with total payloads up to 1250kg.

Optimize pallet transport without changing the plant layout. Thanks to this module, the MiR 1350 picks up, transports and unloads pallets autonomously, freeing up employees for more valuable tasks.

TECHNICAL DATA

The complete technical specifications of the MiR 1350 robot can be read by clicking here.

Below are the specifications of the MiR EU Pallet Lift module

Intended use:

• Device for the autonomous collection and unloading of EU pallets

• Developed to work with the MiR 1350

Dimensions:

• Length 1200 mm

• Width 162 mm

• Heght 87 mm

• Total height when lifted 150 mm

• Lifting height 60 mm

Colore:

• RAL 9005 / Black

Payload:

• Maximum payload 1250 kg

Speed and performances:

• Upward lifting speed  4.0 s

• Downward lifting speed 3.2 s

Pallet:

• Pallet EU 1200 x 800 mm

• Production specifications EU EN 13698-1
