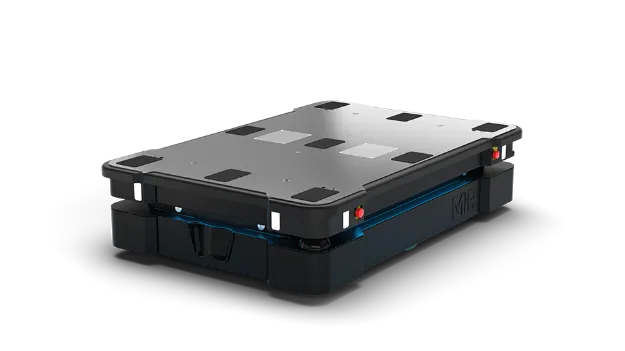

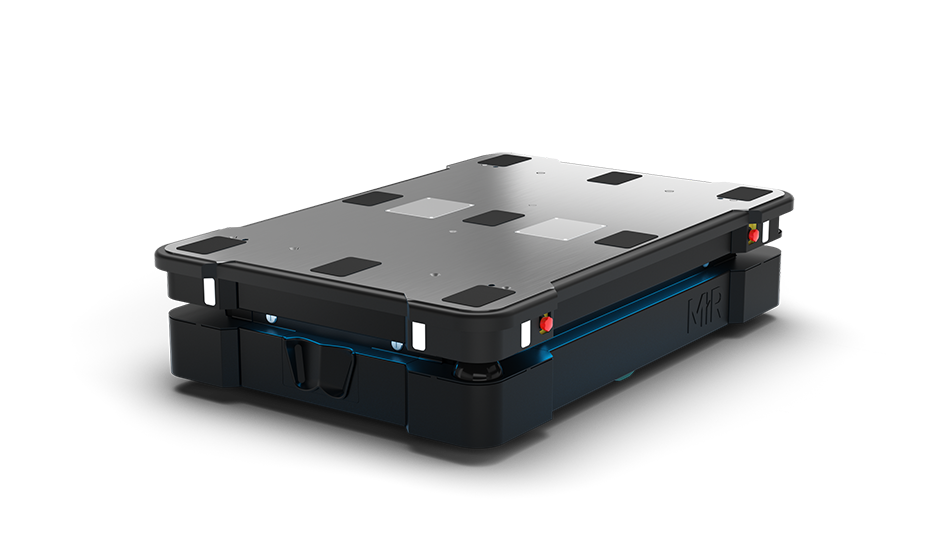

MiR 1350

FEATURES

With a payload of 1350kg (3000lbs), MiR1350 is MiR's most powerful AMR to date and allows you to maximize the efficiency of your logistics operations. You can efficiently move very heavy loads and pallets automatically with the MiR1350. It does not require operational personnel unlike more traditional pallet lifters, and for this it optimizes the transport of pallets and gives employees time to carry out more productive tasks. The collaborative and autonomous MiR1350 safely maneuvers around all kinds of obstacles and if a person walks directly in front of it, they will stop. With advanced technology and sophisticated software, the robot can navigate autonomously and choose the most efficient route to its destination. When it encounters obstacles, the robot automatically redirects and can redirect to avoid interrupting or delaying the delivery of materials.

• Maximum speed: 1.2m / s

• Running time 9.50 hours

• Carico utile del robot: 1350 kg

• Dimensioni: 1350 mm x 920 mm

TECHNICAL DATA

Intended use:

• Autonomous Mobile Robot (AMR)

• For the internal handling of goods and for the automation of internal logistics

Dimensions:

• Lenght 1350 mm mm

• Width 910 mm

• Height 322 mm

• Height from the floor 27 mm

• Weight247 kg

Colour:

• RAL 9005 / Jet Black

Payload:

• Maximum payload 1350 kg (maximum slope 5%)

Speed and performances:

• Autonomy up to 7 hours with maximum payload

• Autonomy up to 10 hours in operation without load

• Autonomy up to 12.30 hours in standby

• Maximum speed 1.2 m / s (4.3 km / h)

• Overcoming difference in height and tolerance on the front 30 mm

Power:

• Li-NMC, 47,7 V, 34,2 Ah battery

• Up to 1:12 (10 minutes of charging gives 2 hours of battery life with maximum payload)

Environmental characteristics:

• Ambient temperature from 5–40 ° C | 41–104 ° F with FoV Height: 1 800 mm | 70.9 in and FoV distance in front of the robot: 1 200 mm

• IP 52 protection

• For internal use only

• 10-85% non-condensing

Comunication:

• I / O connections 4 digital inputs, 4 digital outputs, 1 Ethernet port with Modbus protocol

• WI-FI 2,4 GHz 802.11 g/n, 5 GHz 802.11 a/n/ac

Sensors:

• 2-piece SICK safety system, microScan3 (front and rear), offer 360 ° visual protection around the robot

• 3D Cameras: 2pcs, Intel RealSense ™ D435 3D Camera

• Ultrasonic sensors 8 units

Lights and audio:

• Speaker

• Indicator lights on four sides, eight signal lights (two on each corner) for status signals

Compliance and approvals:

• EMC EN61000-6-4, (EN12895)

• CE, EN1525, ANSI B56.5, ISO3691-4, RIA15.08, ISO13849-1
