Green frame GF-N P100

REGISTRER TO ACCESS OUR ESHOP

Green frame GF-N P100

Option *

1 pcs L=4000 mm
L=

Length *

Availability:

Lead Time:

Overview

FEATURES

Material:	anodized aluminum
Weight:	1.13 Kg / m
Specifications:	use internal connectors

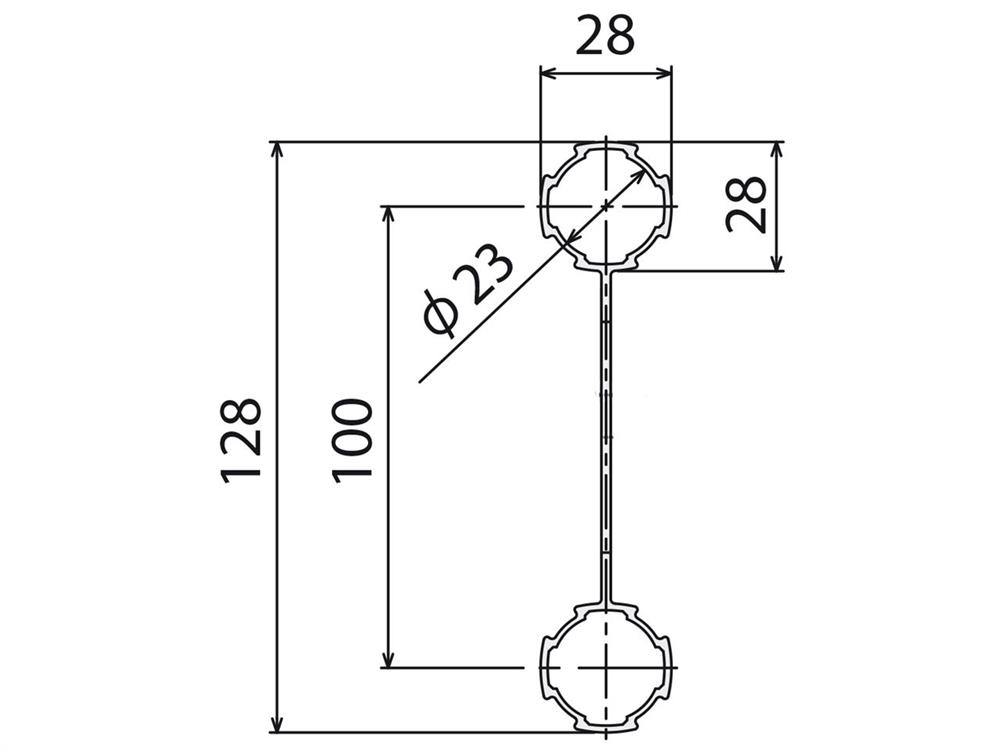

TECHNICAL DATA

Section secondary momentum:
lx=76,81x10⁴ mm⁴
ly=2,32x10⁴ mm⁴
Section coefficient:
Zx=12,00x10³ mm³
Zy=1,65x10³ mm³

APPLICATIONS

Example of workstation
