Dolly type V

Dolly type V is the version with containment corners of Dolly II. Same dimensions, 604 x 404 mm, with 4 swivels of ø 100 mm.
*
Availability:
Lead Time:

FEATURES



Dolly 604 x 404 mm with 4 swivels, in white polyamide. Designed for the transport of “VDA KLT” containers with dimensions 400 x 600 mm, 400 x 300 mm, 300 x 200 mm, it is widely used in the automotive industry. The provision of containment angles ensures better stability of the load. It can be stored and transported on the LP-KA100 Pallet Adapter.

System patented by K. Hartwall A / S.




TECHNICAL DATA





 External dimensions: 604 x 404 x 169 mm
 Weight: 7,5 kg
 Surface treatment: blue zinc plated acc. to EN-ISO2081
 Wheels diameter: 100 mm
 Wheels configuration: 4 swivel
 Wheels material: polyamide
 Max load: 250 kg

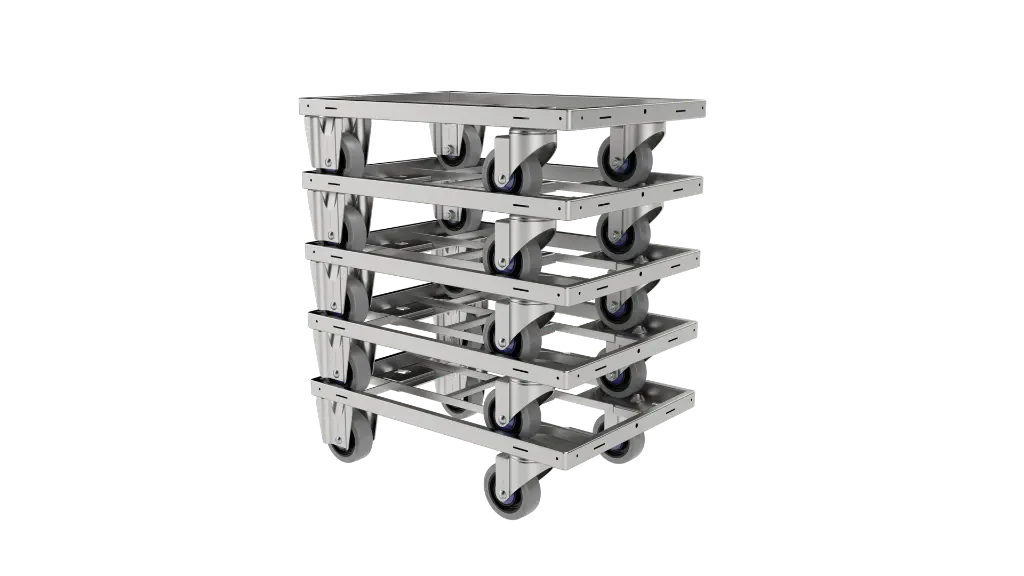

 Safe stacking: 15 pcs (1955 mm)
 Compatibility: LP-KA100; LP-KA010-1
