Dolly type III

REGISTRER TO ACCESS OUR ESHOP

Dolly type III, 400 x 400 mm, with 2 fixed and 2 swivel wheels of ø 100 mm and containment angles. ESD also available.

Type wheels *

Polyamide
ESD

Availability:

Lead Time:

Overview

FEATURES

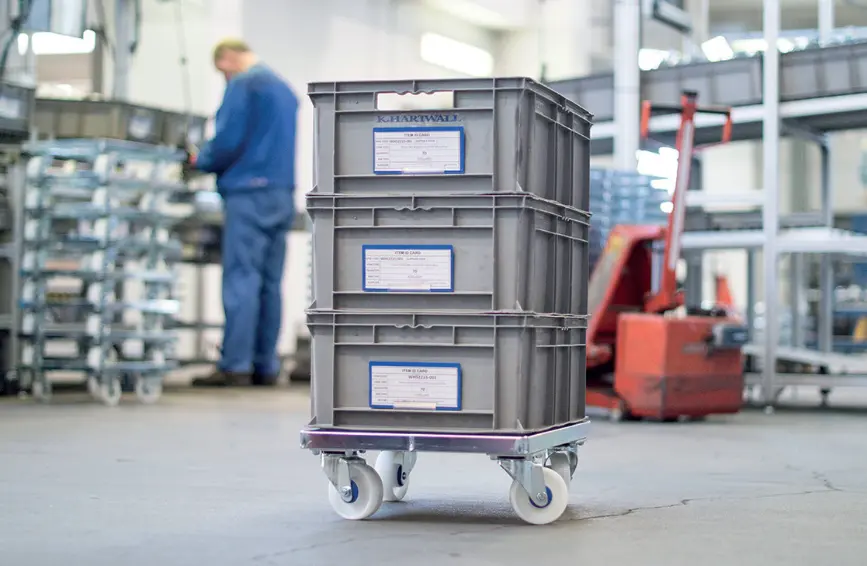

Dolly 400 x 400 mm with 2 fixed and 2 swivel wheels, in white polyamide or in the ESD version. Equipped with containment angles to improve the stability of the load. This dolly is also widely used in the automotive industry. It can be stored and transported on the LP-KA100 Adaptor Pallet.

System patented by K. Hartwall A / S.

TECHNICAL DATA

External dimensions:	400 x 400 x 169,5 mm
Weight:	6 kg
Surface treatment:	blue zinc plated acc. to EN-ISO2081
Wheels diameter:	100 mm
Wheels configuration:	2 fixed + 2 swivel
Wheels material:	LP-KD301-1 polyamide
	LP-KD304-1 ESD
Max load:	160 kg
Safe stacking:	8 pcs (1200 mm)

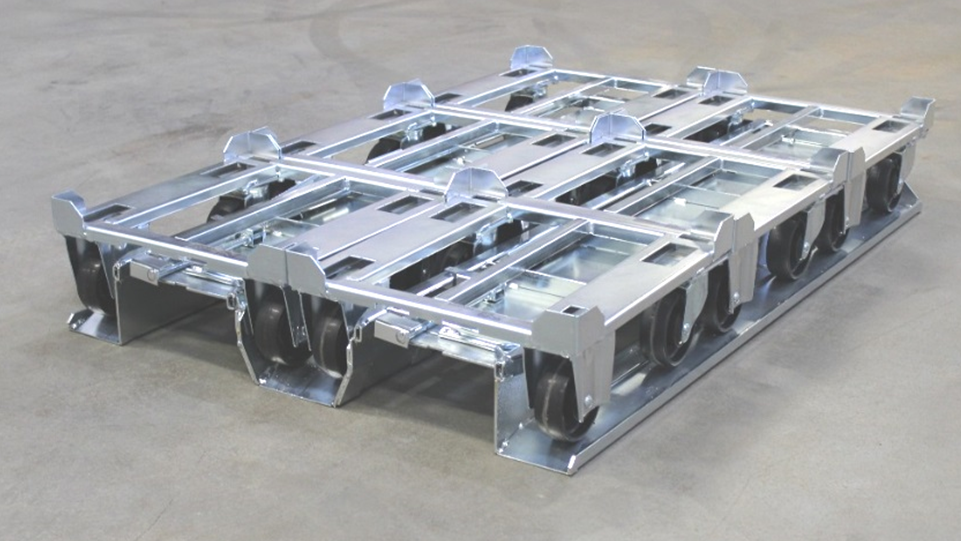

Compatibility:	LP-KA100
