Dolly type VII

Dolly type VII, 600 x 400 mm, with 2 fixed and 2 swivel castors of ø 100 mm, with or without containment angles, with quick-connect chain drawbar. ESD also available.
*
*
Availability:
Lead Time:

FEATURES



It is designed to carry plastic crates and trays used in the automotive industry. Available in dimensions 600 x 400 mm, with 2 fixed and 2 swivel rubber or mixed wheels, also in the ESD version. Available with and without containment corners. It is equipped with a drawbar for chaining and can be easily integrated into the automated transport system. The quick-release drawbar on the short side allows chaining and towing up to 7-8 trucks with a maximum load of 1000 kg. I

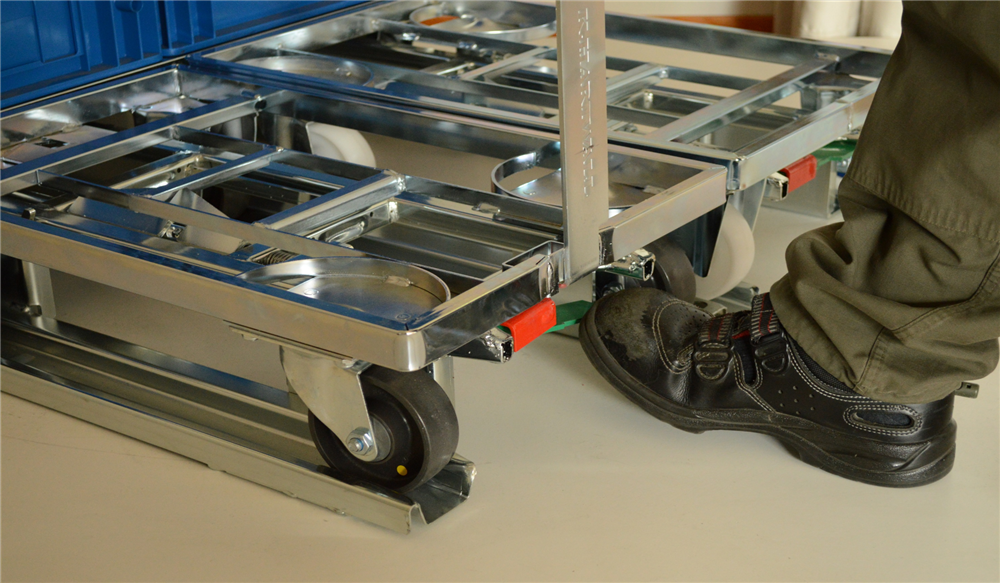

It can be used together with the LP-KA100 pallet feeder for the storage and distribution of components.

System patented by K. Hartwall A / S.



TECHNICAL DATA





 External dimensions: 604 x 404 x 162/382 mm
 Weight: 7,8 kg
 Surface treatment: blue zinc plated acc. to EN-ISO2081
 Wheels diameter: 100 mm
 Wheels configuration: 2 fixed + 2 swivel
 Wheels material: LP-KD702-1 / LP-KD106-1      rubber
 LP-KD704-1 / LP-KD109-1      rubber + ESD
 LP-KD705-1 / LP-KD107-1      rubber + polyamide

 Max load: 250 kg
 Tugger train: 7-8 pcs   max.1000 kg
 Safe stacking: 15 pcs (1950 / 2171 mm)
 Compatibility: LP-KA100; LP-KA010-1
