Dolly type II

Dolly type II, 600 x 400 mm, with 4 swivels of ø 100 mm. ESD also available
*
Availability:
Lead Time:

FEATURES

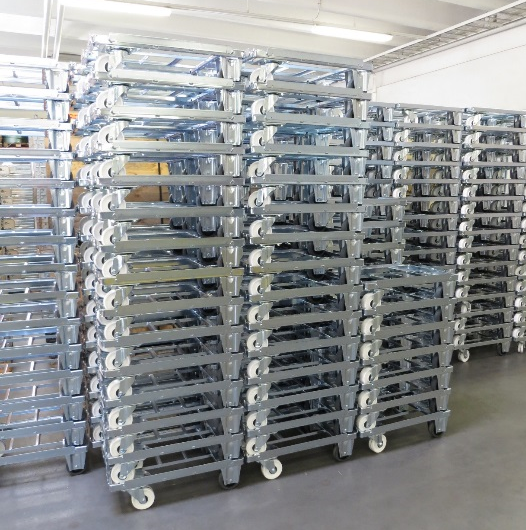

Dolly 600 x 400 mm with 4 swivels, in white polyamide, in rubber or in the ESD version. Designed for the transport of “VDA KLT” containers with dimensions 400 x 600 mm, 400 x 300 mm, 300 x 200 mm, it is widely used in the automotive industry. It can be stacked and stored and transported on the LP-KA100 Pallet Adapter.


System patented by K. Hartwall A / S.



 TECHNICAL DATA





 External dimensions: 600 x 400 x 162 mm
 Weight: 7 kg
 Surface treatment: blue zinc plated acc. to EN-ISO2081
 Wheels diameter: 100 mm
 Wheels configuration: 2 fixed + 2 swivel
 Wheels material: LP-KD101-1: polyamide
 LP-KD102-1: Rubber
 LP-KD104-1: ESD
 Max load: 250 kg
 Safe stacking: 15 pcs (1950 mm)
 Compatibility: LP-KA100; LP-KA010-1
