Taxi Wagon

The Taxi Wagon has been designed for the quick and safe internal transport of 2 or 3 Dolly 600 x 400 mm trolleys even over long distances. Equipped with load-stop dividers and loading ramp on both sides, with manual safety closure. 2 swivel wheels on the side opposite the helm. linkable

Option *

2 bay
3 bay

Availability:

Lead Time:

Overview

FEATURES

The Taxi Wagon has been designed for the rapid and safe internal transport of up to 3 Dolly trolleys even over long distances
Once the ramp is lowered, the Dollies are made to climb into the bays, then the ramp is raised and locked in a vertical position. The Dollies are held in place by plastic dividers and rubber bumpers that guarantee the absence of movement during transport. The two ramps ensure easy loading and unloading from both sides. The ramp locking device is with manual lever
Taxi Wagons can be connected to each other thanks to the integrated trailer system.

TAXI WAGON 2 BAY

TAXI WAGON 3 BAY

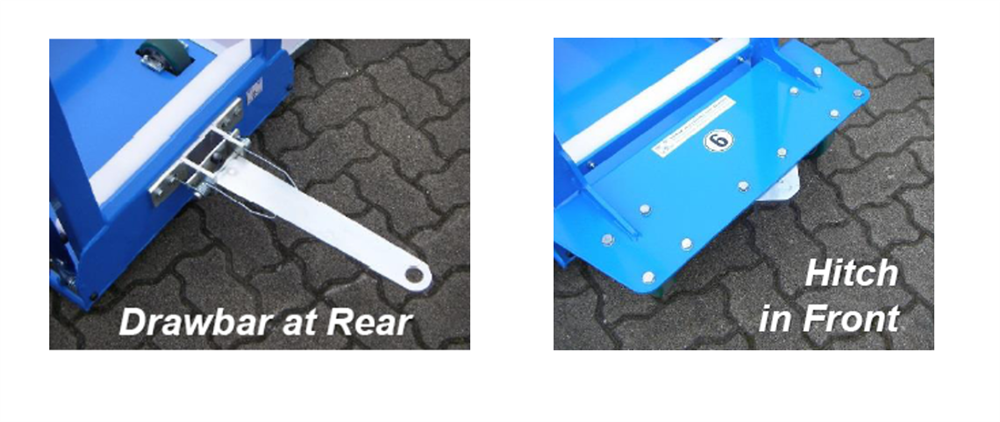

TOWING AND STEERING SYSTEM

System patented by K. Hartwall A / S.

TECHNICAL DATA

	Taxi Wagon 2 bay	Taxi Wagon 3 bay
External dimensions:	1456 x 1425 x 725 mm	1908 x 1425 x 725 mm
Weight::	147 kg	175 kg
Lenght including the draw bar:	1835 mm	2287 mm
Surface treatment:	powder coating	powder coating
Space between dividers:	410 mm	410 mm
Ground clearance:	38 mm	40 mm
Ramp elevation:	70 mm	72 mm
Min. turning circle:	3570 mm	4100 mm
Max. train load:	2250 kg	2250 kg
Max. load:	500 kg	750 kg
Steering system:	Reverse drawbar and 2 steering wheels	Reverse drawbar and 2 steering wheels
Max. speed:	6 km / h	6 km / h
