Mini Dolly pallet

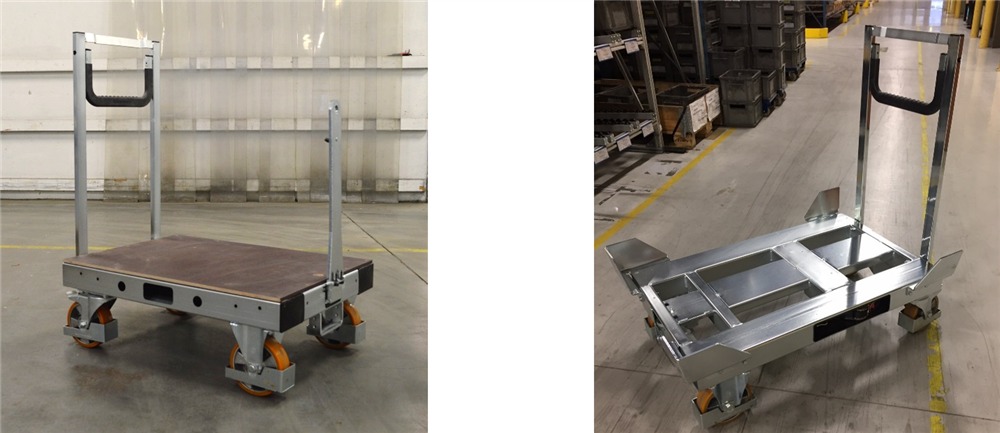

Mini Dolly pallet, new generation, is available with 4 swivel wheels in polyurethane or in version with 2 fixed and 2 swivel wheels. Equipped with ergonomic tilting handle to improve the manual grip and retractable drawbar for towing even more chained carriages. Smaller in size, 923 x 600 mm is perfect for housing 800 x 600 mm pallets. Available in standard version with containment corners or with wooden platform.
*
*
*
Availability:
Lead Time:



FEATURES



The new generation Dolly Pallet New comes in two sizes, 1200x800 mm and 1200x1000 mm, in the version with 4 wheels (2 fixed and 2 swivel with brake) or with 6 wheels (2 fixed and 4 swivel, 2 of which with brake ). The 6-wheel version allows 360 ° rotation on the spot. It is equipped with an ergonomic handle with tilting grip for manual movement and a quick-coupling retractable drawbar, located on the short side opposite that of the ergonomic handle, to allow the towing of several trolleys linked together. Designed for the transportation of heavy loads.



More contained in dimensions, 923 x 600 mm is perfect for accommodating 800 x 600 mm pallets. Available in standard version with containment corners or with wooden platform.



System patented by K. Hartwall A / S.




TECHNICAL DATA







LP-KM001 / LP-KM003

LP-KM003 / LP-KM004

 External dimensions: 926 x 600 x 280/1019 mm926 x 600 x 280/1019 mm
 Weight: 55 kg 55 kg
 Surface treatment: blue zinc plated acc. to EN-ISO2081 blue zinc plated acc. to EN-ISO2081
 Wheels diameter: 160 mm 160 mm

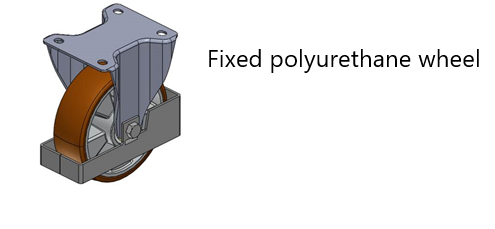

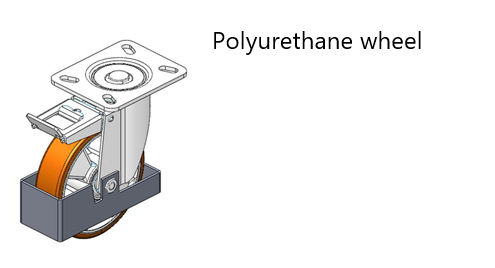

 Wheels configurations: 4 swivel2 fixed + 2 swivel
 Wheels material: polyurethane polyurethane
 Max. load: 1000 kg 1000 kg
 Max. train load:4000 kg4000 kg
 Max. speed: 6 km / h 6 km / h
 Tugger train:6 pcs6 pcs
 Safe stacking:6 pcs (1680 / 2400 mm)6 pcs (1680 / 2400 mm)
