Dolly Pallet with elevated deck

Dolly Pallet with elevated deck h600 mm, available in two sizes and with 4 or 6 polyurethane wheels, 2 of which with brake. The 6-wheel version allows 360 ° rotation on the spot. Equipped with ergonomic handle and drawbar for towing even more chained carriages. Also available in height 500 and 550 mm, on request.

Dimensions *

1200 x 800 mm
1200 x 1000 mm

Number of wheels *

2 fixed + 2 swivel with brake (polyurethane)
2 swivel + 2 fixed + 2 swiwel with brake (polyurethane)

Shelf height *

h 600 mm

Availability:

Lead Time:

Overview

FEATURES

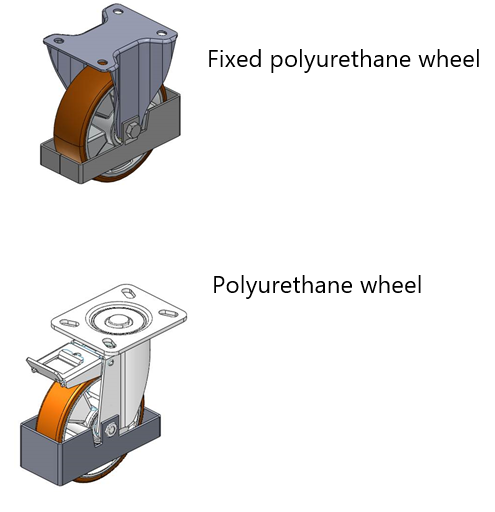

The Dolly Pallet with elevated deck is available in two sizes, 1200x800 mm and 1200x1000 mm, with shelf with corner supports h600 mm, in version with 4 wheels (2 fixed and 2 swivel with brake) or with 6 wheels (2 fixed and 4 swivel of which 2 with brake). The version with 6 wheels allows 360 ° rotation on the spot. It is equipped with an ergonomic handle for manual movement and a quick-coupling retractable drawbar, located on the short side opposite that of the ergonomic handle, to allow the towing of several trolleys linked together.

Also available in height 500 and 550 mm, on request.

System patented by K. Hartwall A / S.

TECHNICAL DATA

	LP-KE001	LP-KE002	LP-KE003	LP-KE004
External dimensions:	1200 x 800 x 600 mm	1200 x 800 x 600 mm	1200 x 1000 x 600 mm	1200 x 1000 x 600 mm
Weight:	89 kg	89 kg	95 kg	95 kg
Surface treatment:	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081
Wheels diameter:	160 mm	160 mm	160 mm	160 mm
Wheels configurations:	2 fixed + 2 swivel	2 fixed + 4 swivel	2 fixed + 2 swivel	2 fixed + 4 swivel
Wheels material:	polyurethane	polyurethane	polyurethane	polyurethane
Max. load:	1000 kg	1000 kg	1000 kg	1000 kg
Max. train load:	340 kg	4000 kg	4000 kg	4000 kg
Max. speed:	6 km / h	6 km / h	6 km / h	6 km / h
Tugger train:	6 pcs	6 pcs	6 pcs	6 pcs
Safe stacking:	up to 1680/2400 mm	up to 1680/2400 mm	up to 1680/2400 mm	up to 1680/2400 mm
