Dolly pallet Type II

Dolly pallet Type II new generation, is available in two sizes and with 4 or 6 wheels, 2 of which with brake. The 6-wheel version allows 360 ° rotation on the spot. Equipped with ergonomic handle and drawbar for towing even more chained carriages. Designed for the transportation of heavy loads.

Availability:

Lead Time:

Overview

FEATURES

The new generation Dolly pallet Type II comes in two sizes, 1200x800 mm and 1200x1000 mm, in the version with 4 wheels (2 fixed and 2 swivel with brake) or with 6 wheels (2 fixed and 4 swivel, 2 of which with brake ). The 6-wheel version allows 360 ° rotation on the spot. It is equipped with an ergonomic handle with tilting grip for manual movement and a quick-coupling retractable drawbar, located on the short side opposite that of the ergonomic handle, to allow the towing of several trolleys linked together. Designed for the transportation of heavy loads.

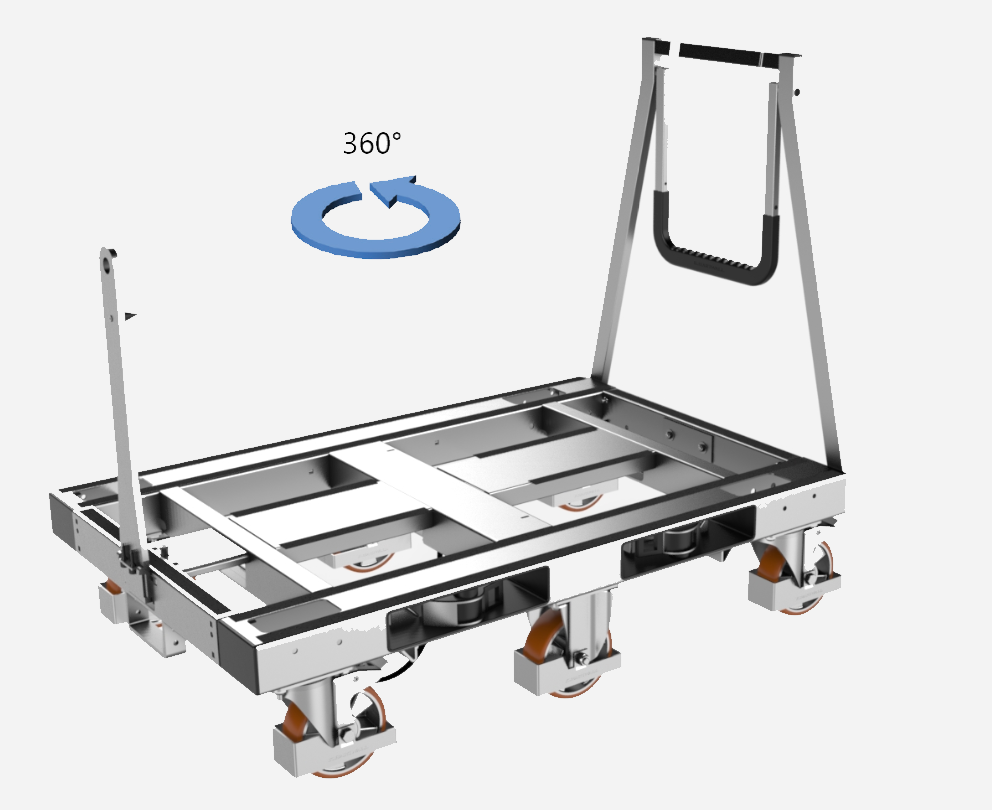

360 ° on-site rotation thanks to fixed central wheels.

System patented by K. Hartwall A / S.

TECHNICAL DATA

	LP-KP001	LP-KP003	LP-KP006	LP-KP005
External dimensions:	1225 x 880 x 280/1019 mm	1225 x 880 x 280/1019 mm	1225 x 880 x 280/1019 mm	1225 x 880 x 280/1019 mm
Weight:	70 kg	70 kg	70 kg	70 kg
Plywood:	-	-	yes	yes
Surface treatment:	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081
Wheels	PU Ø 160 mm	PU Ø 160 mm	PU Ø 160 mm	PU Ø 160 mm
Wheels configurations:	2 fixed + 2 swivel	2 fixed + 4 swivel	2 fixed + 2 swivel	2 fixed + 4 swivel
Max. load:	1000 kg	1000 kg	1000 kg	1000 kg
Max. train load:	3000 kg	3000 kg	3000 kg	3000 kg
Max. speed:	6 km / h	6 km / h	6 km / h	6 km / h
Tugger train:	4 pcs x 1000 kg	4 pcs x 1000 kg	4 pcs x 1000 kg	4 pcs x 1000 kg
Safe stacking:	6 pcs (1680 / 2400 mm)	6 pcs (1680 / 2400 mm)	6 pcs (1680 / 2400 mm)	6 pcs (1680 / 2400 mm)

	LP-KP002	LP-KP004	LP-KP008	LP-KP007
External dimensions:	1225 x 1080 x 280/1019 mm	1225 x 1080 x 280/1019 mm	1225 x 1080 x 280/1019 mm	1225 x 1080 x 280/1019 mm
Weight:	75 kg	75 kg	75 kg	75 kg
Plywood:	-	-	yes	yes
Surface treatment:	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081	blue zinc plated acc. to EN-ISO2081
Wheels	PU Ø 160 mm	PU Ø 160 mm	PU Ø 160 mm	PU Ø 160 mm
Wheels configurations:	2 fixed + 2 swivel	2 fixed + 4 swivel	2 fixed + 2 swivel	2 fixed + 4 swivel
Max. load:	1000 kg	1000 kg	1000 kg	1000 kg
Max. train load:	3000 kg	3000 kg	3000 kg	3000 kg
Max. speed:	6 km / h	6 km / h	6 km / h	6 km / h
Tugger train:	4 pcs x 1000 kg	4 pcs x 1000 kg	4 pcs x 1000 kg	4 pcs x 1000 kg
Safe stacking:	6 pcs (1680 / 2400 mm)	6 pcs (1680 / 2400 mm)	6 pcs (1680 / 2400 mm)	6 pcs (1680 / 2400 mm)
