Dolly pallet

REGISTRER TO ACCESS OUR E­SHOP
Dolly Pallet available in 2 sizes, with 2 central fixed wheels and 4 swivel with brake in polyurethane, equipped with drawbar and ergonomic handle. Bottom in electro-welded mesh and containment angles. Designed for the transportation of heavy loads.
*
*
Availability:
Lead Time:



FEATURES



Dolly Pallet mm with 2 central fixed wheels and 4 swivel ones in rubber or polyurethane, equipped with drawbar for chaining and consequent towing with a towing vehicle. Bottom in welded mesh and containment corners. Designed for the transport of heavy loads.

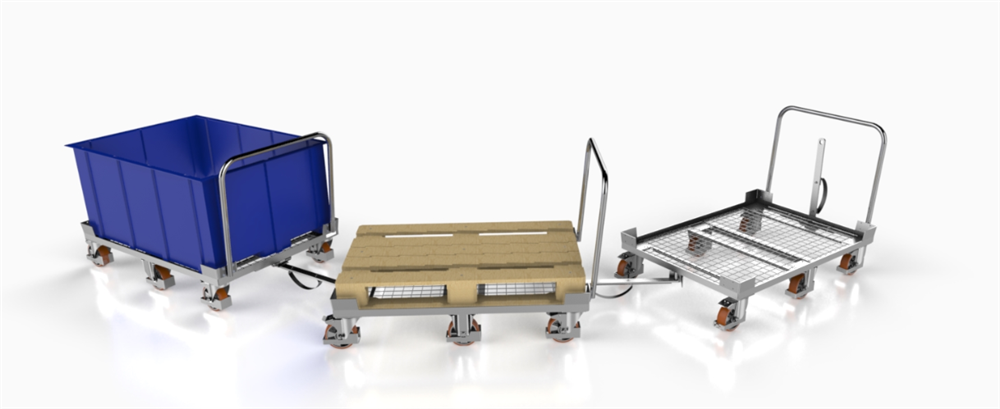

Handle for manual movement and rudder with quick coupling on the short side to allow the towing of several trolleys linked together.

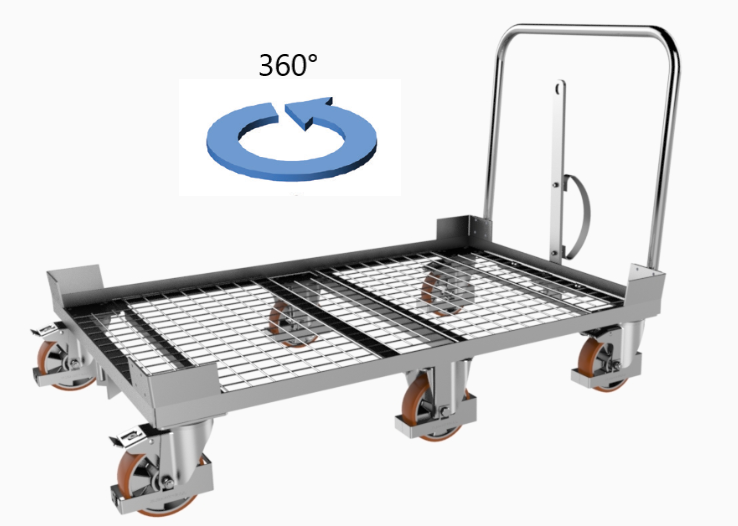

360 ° on-site rotation thanks to fixed central wheels.



System patented by K. Hartwall A / S.




TECHNICAL DATA







LP-KP102

LP-KP104-1

LP-KP112

LP-KP111

 External dimensions:1306 x 901 x 960 mm1306 x 901 x 1005 mm1306 x 1101 x 960 mm 1306 x 1101 x 1005mm
 Internal dimensions:1280 x 880 x 160 mm 1208 x 880 x 205mm 1280 x 1080 x 160 mm  1208 x 1080 x 205mm
 Weight:56 kg60 kg56 kg60 kg
 Surface treatment: blue zinc plated acc. to EN-ISO2081 blue zinc plated acc. to EN-ISO2081 blue zinc plated acc. to EN-ISO2081 blue zinc plated acc. to EN-ISO2081
 Wheels diameter: 125 mm 160 mm 125 mm160 mm
 Wheels configurations: 2 fixed + 4 swivel2 fixed + 4 swivel2 fixed + 4 swivel2 fixed + 4 swivel
 Wheels material: rubber polyurethane rubber polyurethane
 Max. load:4 wheels: 800 kg4 wheels: 800 kg 4 wheels: 800 kg4 wheels: 800 kg
 6 wheels: 1000 kg6 wheels: 1000 kg6 wheels: 1000 kg6 wheels: 1000 kg
 Max. train load:3000 kg3000 kg3000 kg3000 kg
 Max. speed: 6 km / h 6 km / h 6 km / h 6 km / h
 Tugger train:5 pcs x 1000 kg5 pcs x 1000 kg5 pcs x 1000 kg5 pcs x 1000 kg
