Technical Data

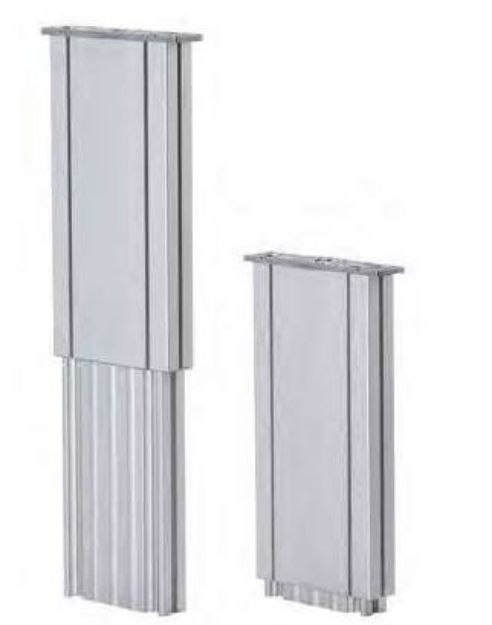

Reliable and robust lifting column, in ergonomic adjustments ensures great safety.


• Maximum static load: 1200 Nm
• Maximum dynamic load: 500 Nm
• Maximum dynamic radial load: 225 Nm
• Type: 2 stage
• Voltage: 24 V/DC
• Maximum power: 144 W
• Maximum absorption: 7 A
• Cable: 1200 mm
• Connector: Molex Mini Fit Jr. Type
• Maximum service S3 load: 1/9 (10%) min
• Operating temperature: +10° to +40°C
• Protection index: up to 54 IP
• Class of insulation: III
• Integrated limit switch: Yes
