Twin LiftLiner

SKU: LP-KLL01

Twin LiftLiner is an innovative and compact solution that allows the loading and unloading of trolleys from both sides, in complete safety. Consisting of 2 chariot-carrying carriages, of dimensions suitable for specific trolleys.

Availability: 0

Lead Time:

Overview

FEATURES

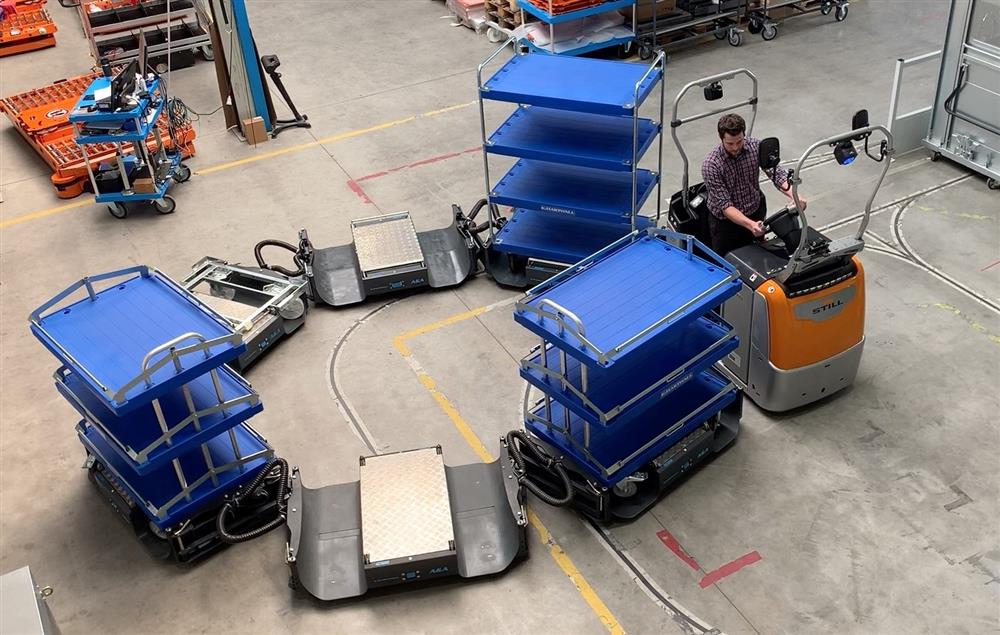

Twin LiftLiner is the most innovative and compact towable solution on the market. It allows the loading and unloading of the trolleys from both sides ensuring a very flexible and efficient route planning during the supply of the production lines. It allows a very reduced movement of the axis and allows a high stability. The 90 ° steering angle of the crossbar attachment system allows the system to rotate and tilt precisely.

The Twin LiftLiner tilts on the load side with a maximum slope of 10 ° facilitating the ascent / descent of the trolley.

TECHNICAL DATA

Width:	1000 mm
Length:	1600 mm
Height lowered / raised	290/350 mm
Ground clearance:	60 mm
Weight:	180 kg
Surface treatment::	powder coating
Whells material:	poliuretano
Wheels dimension:	ø 200 mm
Wheels configuration:	2 for wafon
Coupling system:	A&Acrossbar coupling system
Train length by 3 Twin LiftLiner:	9600mm

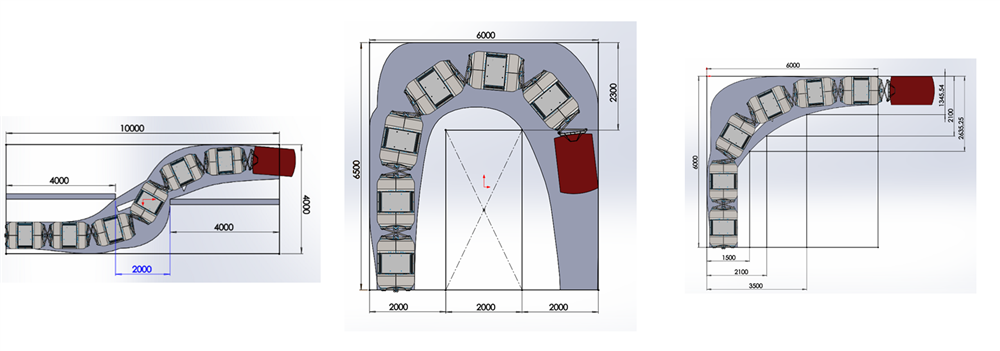

U turn radius with 3 Twin LiftLiner :	4500 mm
Max. load:	1000 kg
Max. train load :	8000 kg
Max. speed:	16 km / h
Maximum slope :	10%
Time to lift:	3 sec.
Tugger train:	4 pz

System patented by K. Hartwall A / S.
