Elephantboard® LiftLiner

Elephantboard® is a trolley with 4 shelves in resistant plastic specific for use on Twin LiftLiner. Available in 2 sizes 800 x 600 mm / 1200 x 800 mm, it allows ample loading space for the components or containers to be handled. ESD version also available. On request also versions with 1, 2 or 3 shelves.
*
*
Availability:
Lead Time:



FEATURES

Elephantboard® is a multifunctional trolley with a load capacity of up to 1000 kg, for indoor and outdoor use, designed and produced to be used with Twin LiftLiner which accommodates them by tilting up to 10 ° from the loading side.





The shelves are made of 5 mm thick plastic, extremely resistant to impacts, which are characterized not only by their strength but also by their resistance to humidity. Thanks to the modular system consisting of an aluminum structure and, precisely, the plastic shelves, Elephantboard® is versatile and can be used in almost all industrial realities. The large wheels and the stability of the structure make it ideal for moving large loads. All models are equipped with 2 swivel wheels and 2 fixed wheels with a diameter of 200 mm and a width of 50 mm. Both swivel wheels are equipped with a brake, according to European legislation.





TECHNICAL DATA



 800 x 600 mm



LP-KB101M

LP-KB102M

LP-KB102T

LP-KB103

 LP-KB104

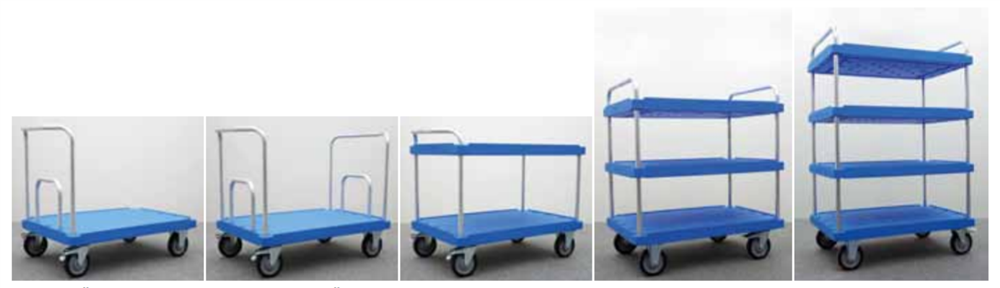

Description Pushbar trolleyDouble push bar trolley Table trolley  3 shelves trolley  4 shelves trolley
Shelves colourBlueBlueBlueBlueBlue
Length (mm)9701030970910910
Width (mm)620620620620620
Total height (mm)10301030103014001800
Loading area (mm)840 x 600800 x 600840 x 600800 x 600800 x 600
Loading height (mm)290290290 / 910290 / 740 / 1190290 / 740 / 1190 / 1640
Ground clearance (mm)--570390390
Load (kg)500500500500500
Weight (kg)1618283545





1200 x 800 mm



LP-KB201M

LP-KB202M

LP-KB202T

LP-KB203

 LP-KB204

Description Pushbar trolleyDouble push bar trolleyTable trolley  3 shelves trolley  4 shelves trolley
Shelves colourBlueBlueBlueBlueBlue
Length (mm)13001360130014501450
Width (mm)820820820820820
Total height (mm)10301030103014001810
Loading area (mm)1145 x 8001090 x 8001145 x 8001090 x 8001090 x 800
Loading height (mm)310310310 / 930310 / 760 / 1210310 / 760 / 1210 / 1660
Ground clearance (mm)--530365365
Load (kg)1000 / 5001000 / 5001000 / 5001000 / 5001000 / 500
Weight (kg)2530405565

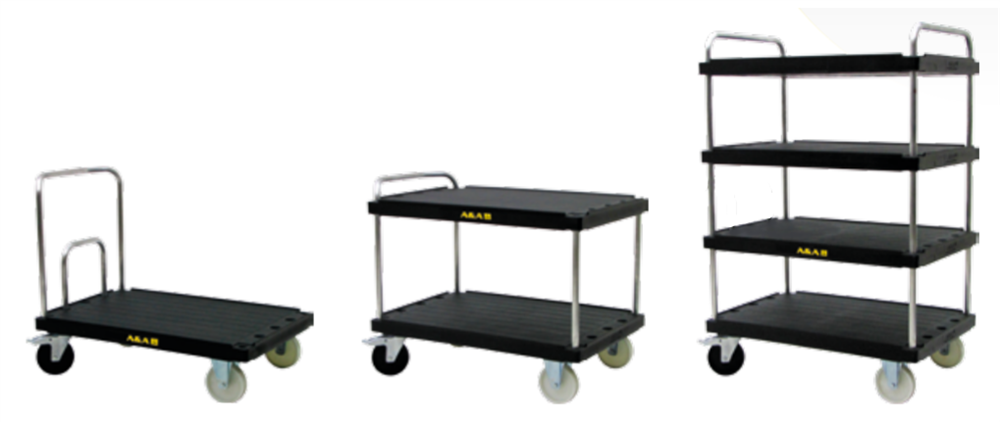

 1200 x 800 mm ESD



LP-KB201MESDLP-KB202MESDLP-KB202TESDLP-KB203ESD LP-KB204ESD
Description Pushbar trolleyDouble push bar trolleyTable trolley 3 shelves trolley 4 shelves trolley
Shelves colourBlack ESDBlack ESDBlack ESD Black ESDBlack ESD
Length (mm)130013001300 14501450
Width (mm)820820820 820820
Total height (mm)10308201030 14001810
Loading area (mm)1145 x 8001090 x 8001145 x 800 1090 x 8001090 x 800
Loading height (mm)3101090 x 800310 / 930310 / 760 / 1210310 / 760 / 1210 / 1660
Ground clearance (mm)--530365365
Load (kg)1000 / 5001000 / 5001000 / 5001000 / 5001000 / 500
Weight(kg)25 40 65



APPLICATIONS

System patented by K. Hartwall A / S.
